TMDS181: about TMDS181 output

Vera Mao

Part Number: TMDS181

hi dear supporting team,

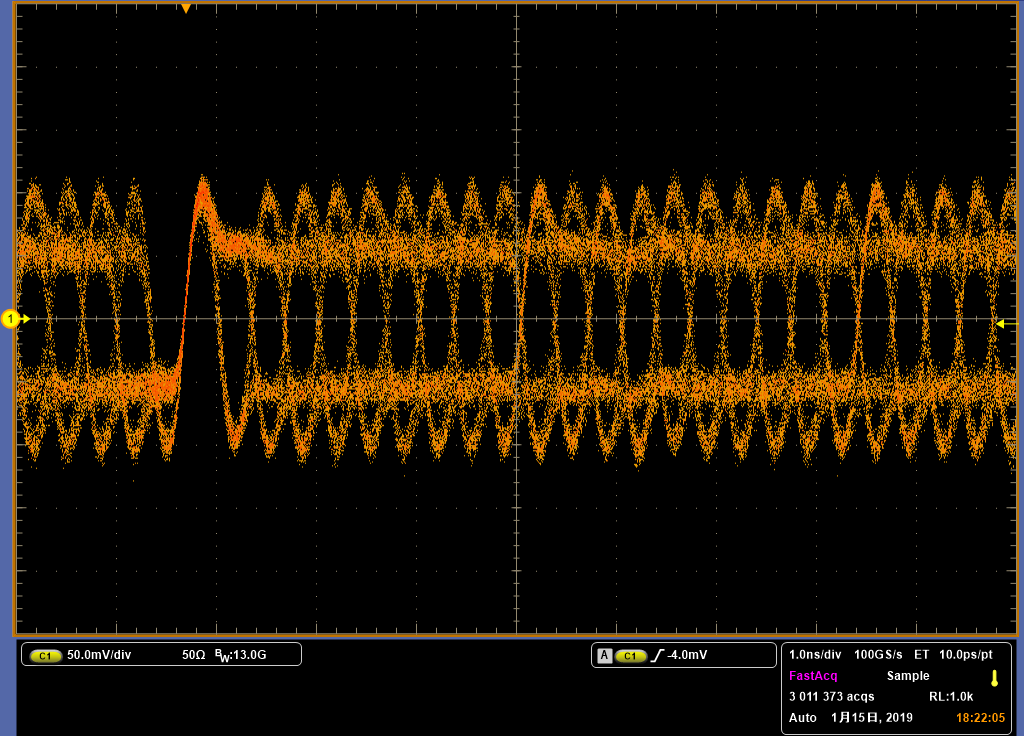

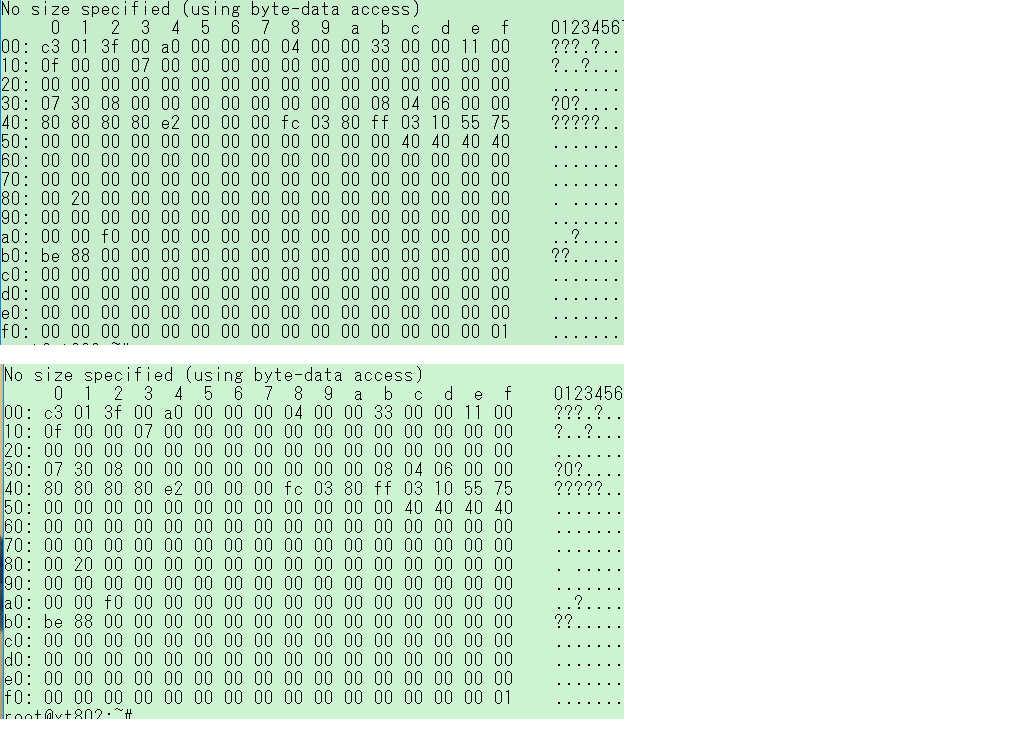

customer did not set de-emphasis function in 181, while they found the output seems be pre-emphasised, the page1&2 reg are dumped as below, could you pls help check what's wrong? tks!

over 5 years ago

0 Brian Zhou over 5 years ago

TI__Guru** 105055 points

I2C looks fine, do you set pin 20 (PRE_SEL) to high?

0 Vera Mao over 5 years ago in reply to Brian Zhou

TI__Expert 5065 points

hi Brian,
thank you for the reply!
no, they did not connect it to high, they float it, I will send you the sch with email. pls help check whether any problem here. tks!

0 Brian Zhou over 5 years ago in reply to Vera Mao

TI__Guru** 105055 points

ok, waiting for your schematic

0 JMMN over 5 years ago in reply to Brian Zhou

TI__Guru 60865 points

Closed over direct email
