LMH0056: LMH0056 for seamless switching HD-SDI.

Yaroslav Vasenkin

Part Number: LMH0056
Other Parts Discussed in Thread: DS25CP104A

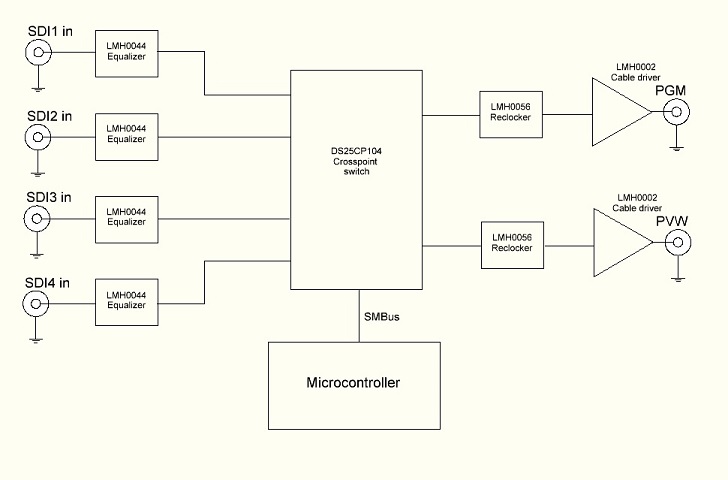

Hello! I want to design and build a small HD-SDI video switcher for four inputs and two outputs with both PGM and PVW buses and one type of transition - CUT. Is it possible to use the built-in multiplexer LMH0056 for seamless switching of HD-SDI signals with switching quality as cut in vision mixers? Or, for example, apply the crosspoint switch chip DS25CP104A together with the LMH0056 reclocker?

over 4 years ago

0 Nasser Mohammadi over 4 years ago

TI__Guru* 88835 points

Hi Yaroslav,

I believe you can use LMH0056 to switch between different inputs. Actual switching from one input to another input is the same as DS25CP104 device(this is in order of nano seconds).What are you planning to use for the two output cable drivers? Can you send us a block diagram of the overall design?

Regards,,nasser

0 Yaroslav Vasenkin over 4 years ago in reply to Nasser Mohammadi

Prodigy 30 points

Yes, I plan to use two drivers. I’m wondering if such a circuit would allow a seamless switching if the signals were previously synchronized to the reference signal? Or do I need to re-sync the inputs?

0 Nasser Mohammadi over 4 years ago in reply to Yaroslav Vasenkin

TI__Guru* 88835 points

Hi Yaroslav,

LMH0056 is going to be gen locked to SDI input. Also, you are not doing any de-serialization or other video processing to introduce video delays or buffering. So I don't think you need re-synchronization.

Regards,,, Nasser

0 Yaroslav Vasenkin over 4 years ago in reply to Nasser Mohammadi

Prodigy 30 points

Nasser, thank you very much for answers!
