DP83TC811R-Q1: Master gets not link

Markus Friesen

Part Number: DP83TC811R-Q1

Dear Support-Members,

I have two boards with a DP83TC811R-Q1 Ethernet-Phy. One phy is configured as master the other as slave. Both phys are in autonoumous mode. When I connect these boards together, the slave gets a link but the master do not. When I connect the boards to a T1-Switch, both boards get a link.

How can I get a link to the master, when both boards are connected directly together without using a switch?

Thank you for your help

over 3 years ago

0 Cecilia Reyes over 3 years ago

TI__Genius 9920 points

Hi Markus,

Can you please share the schematic and how you are configuring both devices as master and slave?

Thanks,

Cecilia

0 Markus Friesen over 3 years ago in reply to Cecilia Reyes

Prodigy 20 points

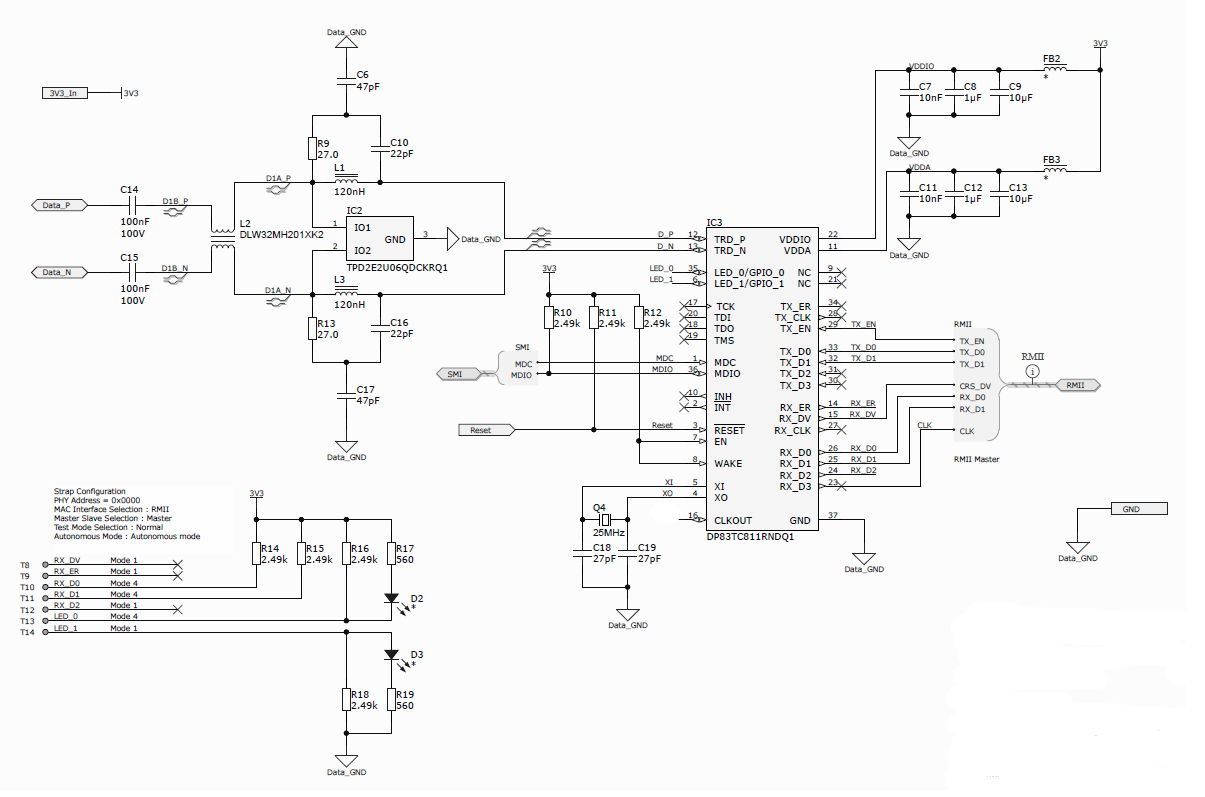

This is the shematic for the phy with the master configuration. For the slave R16, R17 and D2 are not populated.

Thanks,

Markus

0 Cecilia Reyes over 3 years ago in reply to Markus Friesen

TI__Genius 9920 points

Hi Markus,

Thanks for sharing this I'll need a day to review the schematic. And just to confirm, what type of cables, what length and what type of connector are you using between the master and slave devices?

Thanks,

Cecilia
