Hi team,

My customer is using DS90UB913A and DS90uB914A with STP cable.

They need a STP cable requirement. I found SNLA229 app note, but it describes about coaxial cable.

Could you give me a STP cable requirement for DS90UB913A/914A like insertion loss and differential impedance?

Regards,

Saito

over 3 years ago

0 Steven(Shenzhen) Shi over 3 years ago

TI__Mastermind 30515 points

Hi Saito,

we don't qualify the STP cable in details, but the typical application in the market is based on the DACAR535 cable with below feature, please refer to below as typical value for reference.

thanks.

regards,

Steven

0 Steven(Shenzhen) Shi over 3 years ago in reply to Steven(Shenzhen) Shi

TI__Mastermind 30515 points

also, for the diff. impedance request, pls check below:

PCB trace: 100+/-5%

cable: 100 +/-10%

connector: 100 +/-20%

regarsds,

Steven

0 Takahiro Saito over 3 years ago in reply to Steven(Shenzhen) Shi

TI__Expert 5315 points

Hi Steven-san,

Thanks. DACAR 535-2 is STQ cable, right? Is there any reference data of S11 and S21 for recommended STP cable?

Regards,

Saito

0 Steven(Shenzhen) Shi over 3 years ago in reply to Takahiro Saito

TI__Mastermind 30515 points

Hi Saito,

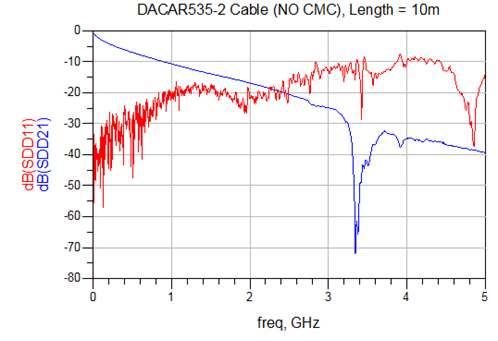

Yes, you can read this typical value in the curve, one example is for your reference.

1.5Ghz	SDD11	-17.8	dB
	SDD21	-13.9	dB

Interface
