TXB0304: How to deal with TXBN0304RSV unused pin

fei wang

Part Number: TXB0304
Other Parts Discussed in Thread: TXB0302

How to deal with TXBN0304RSV unused pin?

0 Emrys Maier over 5 years ago

Hello Fei,
Which pins are you not using?

0 fei wang over 5 years ago in reply to Emrys Maier

Hi Emrys,

Thank you for your help.

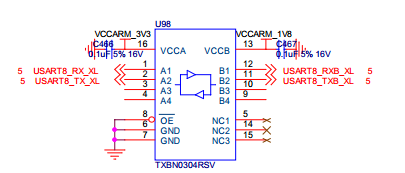

In the picture pin3,10,4 and 9 are unused. Should I float them or tie to vcc or GND？

0 Emrys Maier over 5 years ago in reply to fei wang

Hi Fei,
I would recommend connecting the unused channel pins to ground (directly).

0 ShreyasRao over 5 years ago in reply to fei wang

Hi Fei Wang,

You could also consider using the TXB0302 device which have only 2 pair of channels.

0 fei wang over 5 years ago in reply to Emrys Maier

Thanks.

0 fei wang over 5 years ago in reply to ShreyasRao

Thanks
