SN6501-Q1: I cannot Import SN6501-Q1 to TI Tina

Part Number: SN6501-Q1
Other Parts Discussed in Thread: SN6501, TINA-TI, SN6505B

Hi,

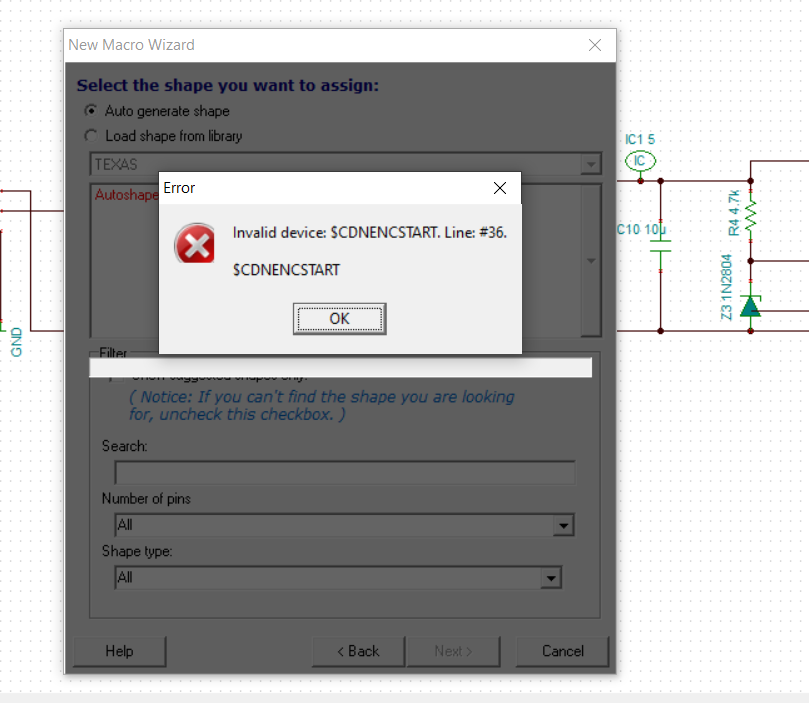

I am trying to import the SN6501-Q1 model into Tina. I followed the normal steps but received an error in New Macro Wizard.

It gave me the following error message: invalid device $CDNENCSTART.line: #36

How should I resolve this?

  • Hi Mukund,

    Thank you for posting to E2E!

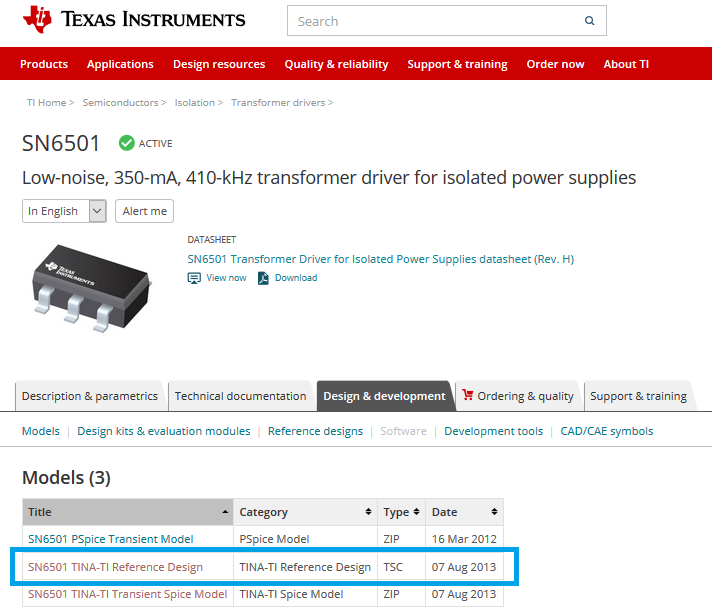

    The PSpice model on the "Design & development" tab of SN6501-Q1 is troublesome to import to TINA-TI since it isn't the default file type or format for SPICE macros, .cir. An equivalent model can be found in the SN6501 product folder's "Design & development" tab as shown below:



    These models will open in TINA-TI be default. If they do not include all of the parameters of SN6501 you are interested in, the SN6505B Reference Design models will be helpful to use as a reference.

    Please let me know if one of the solutions above is helpful.


    Thank you,
    Manuel Chavez
