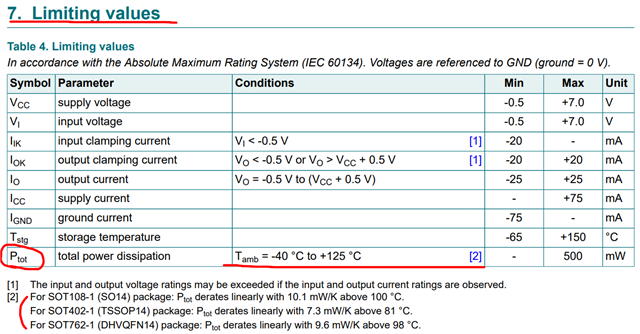

SN74HC02-Q1: Power consumption of Logic products vs competitors part

Hi Lenny,

We don't spec power consumption on our devices because it is very dependent on the specific system and test conditions. You can calculate power consumption from your system parameters and datasheet parameters by following this guide: e2e.ti.com/.../faq-how-do-i-calculate-power-consumption-or-current-consumption-for-my-cmos-logic-device

Hi Lenny,

It seems I misunderstood. I thought you were asking about power consumption, not max power dissipation. Here's the formula to calculate the maximum power dissipation:

P_max(W) = (T_J(max)(°C) - T_A(max)(°C)) / θ_JA(°C/W)

P_max := maximum power consumption before thermal failure

T_J(max) := maximum junction temperature (150°C for standard logic devices, unless otherwise stated in the datasheet)

T_A(max) := maximum ambient temperature of operation

θ_JA := junction-to-ambient thermal resistance

Since it depends on the ambient temperature of operation, we don't spec it in the datasheet since we can't know ambient temperature for our customers' applications.

e2e.ti.com/.../faq-where-do-i-find-maximum-power-dissipation-for-a-device
