SN74LVC1G29: package drawing pin number discrepancy

Alberto Doronzo

Expert 4750 points

Part Number: SN74LVC1G29

Hi,

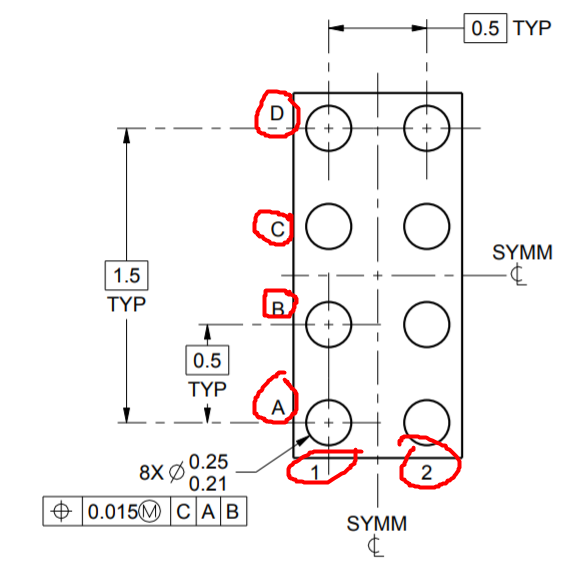

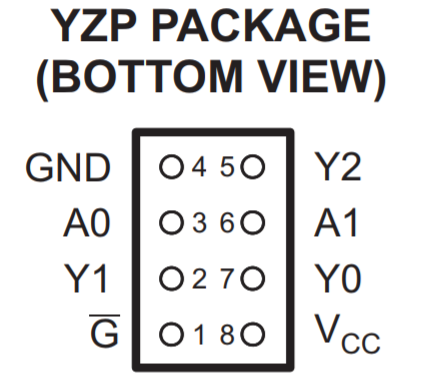

there is a discrepancy in the naming of the pins for SN74LVC1G29 in the datasheet (see below)

Thank you,

Alberto

over 6 years ago

0 Emrys Maier over 6 years ago

TI__Guru* 97017 points

Hello Alberto,
Thank you for bringing this to our attention. I will add this issue to our list of errata for the datasheet.

For now, the correct pin associations are:
1 = A1
2 = B1
3 = C1
4 = D1
5 = D2
6 = C2
7 = B2
8 = A2
