Part Number: SN74LVC2G06-EP
Other Parts Discussed in Thread: SN74LVC2G06

The code mark on this device per the data sheet is CTO but the code mark on the one we ordered is CT5.

I cannot find the mark for pin 1.

The part I got is actually SN74LVC2G06QDCKR. Is this the same as SN74LVC2G06-EP? If not, where can I find the data sheet for SN74LVC2G06-EP?

Thanks

over 4 years ago

0 Kirby Kruckmeyer96848 over 4 years ago

TI__Genius 17035 points

Hello Minglai,

SN74LVC2G06-EP is the generic product name for the EP grade of the part. If you go to that product page or datasheet, you will see that the orderable product name is: SN74LVC2G06MDCKREP or it can be ordered by the VID number: V62/06640-01XE

SN74LVC2G06QDCKR is the commercial grade version of the part. It will have the marking CT5. It is covered by the generic product number and datasheet: SN74LVC2G06

The package drawing at the back of the datasheet will show how to identify pin 1.

0 Minglai Kao over 4 years ago in reply to Kirby Kruckmeyer96848

Intellectual 635 points

Hi Kirby,

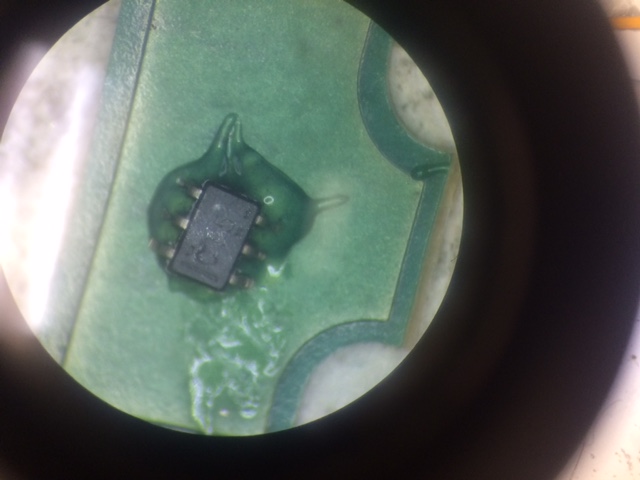

I have trouble identifying pin 1. There is thin bar next to the letter "C" on the left side.. Which is pin 1?

What is the input resistance of the input pins?

Thanks

Ming

0 Kirby Kruckmeyer96848 over 4 years ago in reply to Minglai Kao

TI__Genius 17035 points

Hi Ming,

Since you actually have the commercial grade version of the part, I am moving this thread to the group that supports and knows more about the commercial versions.

0 Minglai Kao over 4 years ago in reply to Kirby Kruckmeyer96848

Intellectual 635 points

Hi Kriby,

Per the operating temperature range in the datasheet, it should be an industrial part.

0 Minglai Kao over 4 years ago in reply to Minglai Kao

Intellectual 635 points

Hi,

The circuit below does not seem to be working.

This is why I am asking the question.

There is a 4.7K ohm resistor pulled up to Vcc_in at the input pin.

Thanks

0 Wade Vonbergen over 4 years ago in reply to Minglai Kao

TI__Guru 62930 points

The device indicated is the Automotive version.

It has its own product folder:

If you ordered the Q1 version, SN74LVC2G06QDCKRQ1 the the marking should be CTO per the marking information. (from the orderable tab in product folder).

Please post the circuit again. It did not show up in the forum. Use the paperclip option to insert the image or file.

Regards,

Wade

0 Emrys Maier over 4 years ago in reply to Wade Vonbergen

TI__Guru* 96591 points

Hi Ming,

The line at the end of the device is the "pin 1 index" described in the datasheet:

I added a green highlight to indicate the line.

If you place the line to your left, then pin 1 will always be at the bottom left of the device.

0 Minglai Kao over 4 years ago in reply to Emrys Maier

Intellectual 635 points

That is what I thought at the beginning but I burned a device with that assumption.

I found it to be on the opposite side.

Do you have a datasheet showing this code mark CT5 and pin 1 identification?

Thanks

0 Emrys Maier over 4 years ago in reply to Minglai Kao

TI__Guru* 96591 points

Hi Ming,

The last digit is just a manufacturing indicator to let us know which site made the part. It does not change the pinout.

This is a direct screenshot from the manufacturing site for the topside marking:

As you can see, the CT5 device has the same pin 1 indicator as all the others, as I showed above.

What circuit are you using to test the device? Can you share a schematic?

0 Minglai Kao over 4 years ago in reply to Emrys Maier

Intellectual 635 points

Hi Emrys,

Sorry. My mistake.

Thanks

0 Emrys Maier over 4 years ago in reply to Minglai Kao

TI__Guru* 96591 points

No problem - I'm glad you found your solution!

Please come back any time.
