SN74LVC1G32: Top side marking check

Shu-Cheng LIN
Guru 11785 points
Part Number: SN74LVC1G32

Hi Sirs,

Sorry to bother you.

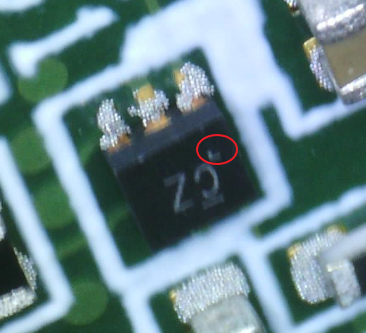

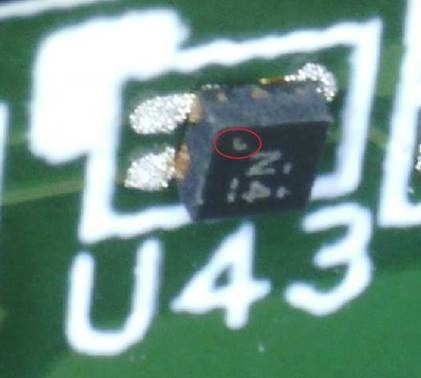

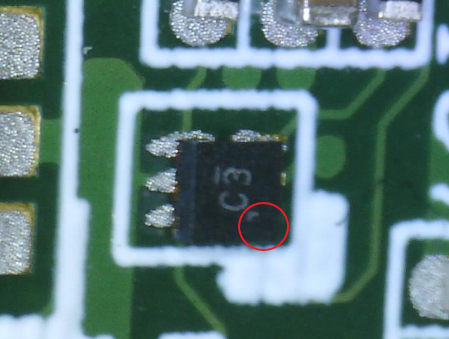

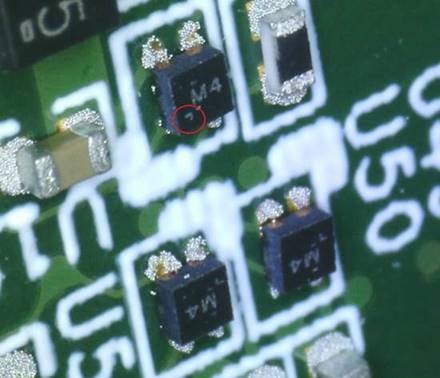

We need to confirm below picture whether the red corner is Pin 1 or not.



1)     SN74LVC1G32DPWR

2)     SN74LVC1G08DPWR

3)     SN74LVC1G11DSFR

4)     SN74LVC1G332DSFR

By the way,

Our SMT line feedback the marking is too superficial cause difficult to make sure where is pin 1,

Has possibility made marking deep?

  • 0
    TI__Genius 16725 points

    Hi,

    Yes, the marking you mention is the top side marking for pin 1.

    I am sorry to hear that it is hard to follow, however if you look at the tape and reel page of the datasheet, it mentions the direction the parts are placed in the tape.

    You can follow this guideline to know where pin 1 is before removing it from the reel.

    Thanks!

    -Karan
