RM57L843: Errata DEVICE#56

Koichiro Tashiro

Part Number: RM57L843

Hi,

Please clarify the workaround for Errata Device#56.

My customer observes CPU compare error a lot under debug.
esm1_stat2 : 00000004

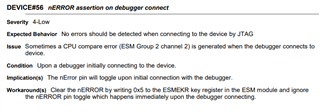

According to errata document, just writing 0x5 to ESMEKR and ignore nERROR pin is enough.
We do not need to take other actions such as clearing ESMSR2?

Thanks and regards,
Koichiro Tashiro

over 2 years ago

0 QJ Wang over 2 years ago

TI__Guru**** 186226 points

Hi Koichiro,

This issue only happens immediately upon the debugger is connected. Otherwise, the error (ESM 2.2) is caused by CPU lockstep, or CCM selftest.

If it is caused by debugger, clearing the ESMSR2 and writing 0x5 to ESMEKR to clear nError pin are enough.

0 Koichiro Tashiro over 2 years ago in reply to QJ Wang

TI__Mastermind 21150 points

Hi QJ,

QJ Wang said:
If it is caused by debugger, clearing the ESMSR2 and writing 0x5 to ESMEKR to clear nError pin are enough.

Do you mean ESMSR2 also needs to be cleared?
Just writing 0x5 to ESMEKR as errata workaround is not enough.

Thanks and regards,
Koichiro Tashiro

+1 QJ Wang over 2 years ago in reply to Koichiro Tashiro

TI__Guru**** 186226 points

Hi Koichiro,

Writing 0x5 to ESMEKR can release the ESM error pin back to normal state. But the error flag at ESM 2.2 is not cleared. Writing 2 to ESMSR2 and ESMSSR2 will clear the fags.

0 Koichiro Tashiro over 2 years ago in reply to QJ Wang

TI__Mastermind 21150 points

Hi QJ,

I see. Thanks for confirming.

Thanks and regards,
Koichiro Tashiro
