I can't find the TMS320F280270 lanchpad's SCH not the TMS320F280270

Hi Roy,

What is the name of your development kit? Check it out from here: http://www.ti.com/product/TMS320F280270#toolssoftware

Does it look like this: http://www.ti.com/tool/tmdscncd28027

or is it a TMS320F28027 based C2000 Launchpad?

Regards,

Gautam

Hello Gautam:

                         I don't know the name of development kit, you know, I only the the MCU is TMS32F28270, The C2000 launchpad's MCU is TMS320F28027, you know ,the board is red, However,My board is white,The mcu is TMS32F280270.

                         http://www.ti.com/product/TMS320F280270#toolssoftware This link is right,however ,i don't find the demo board like mine.

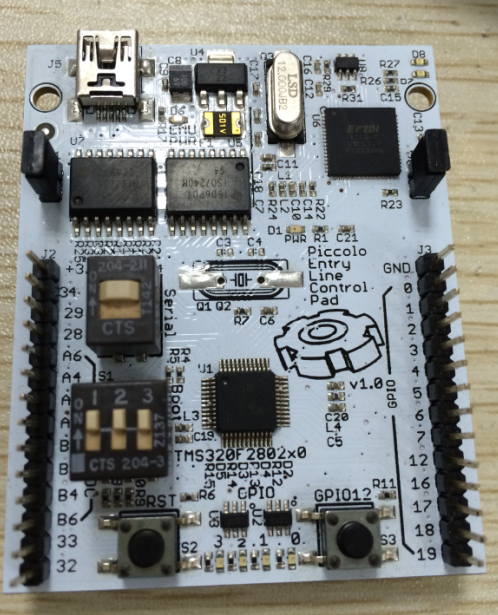

this is my board :

Roy, this seems like a very old kit. I would like you to wait for one of my TI buddies to help  you out from their archives.

Please be patient.

Regards,

Gautam

Hello :

           You are right,i have this board 3 years,i can wait for you ,it's OK

            Thanks so much.

best regard

Roy.

Roy, till that time I would like to check and verify whether this schematic matches the above pcb or not:

0523.LAUNCHXL-F28027-SCH.pdf

Visually, it seems like C2000 launchpad's white version. Do check and let me know :)

Regards,

Gautam

It's not .I have this SCH.you know .they are different.

Fine, lets wait :)

Regards,

Gautam

Hello Guy:

                  Oh yeah, Thanks so much. Quote, I have this board for 3 three years ,it' has long history,My friend give me this board form TI(china).

                   Last week,I debug a LED demo, It's still can work. so i am very happy ,because of i wanna do some experiment. you know .

                   In the end ,thanks again.

WOW!  I didn't think I would see one of those boards again!!  There's a long history behind the C2000 LP that spans the past 5 years or so.

That's why I was wondering, why there was no documentation available online. Though, I did immediately conclude that this might be one of the customized board for some organization. Good to know the history!

Regards,

Gautam

This is essentially LaunchPad version 0.

We sold some in China before we stopped and revised to make the official LAUNCHXL-F28027.

Please just purchase a new LaunchPad..if you send me this one I'll send you a new one :)
