graphing

hamid

I am using the f28069 for a no bios applications and want to visualize one variable using the graph option but I didn't see this possibility in my tools (CCS6).

any idea ?

thanks

over 9 years ago

0 David M. Alter over 9 years ago

TI__Guru 61235 points

Hamid,

Go to the Tools->Graphs menu in CCSv6, then hoose 'Single Time'. Won't this do it for you? Maybe you just didn't spot it.

Regards,
David

0 hamid over 9 years ago in reply to David M. Alter

Intellectual 890 points

Hi David,

Thank you for your quick answer.

The problem is under Tools I don't have Graphs (see bellow) and I don't know why?

0 Gautam Iyer over 9 years ago in reply to hamid

Guru 192875 points

Hamid, You've to be in Active debug mode! Also, I hope you've set your target configuration. I can't see any debugger listed under debug window above.

0 David M. Alter over 9 years ago in reply to hamid

TI__Guru 61235 points

Hamid,

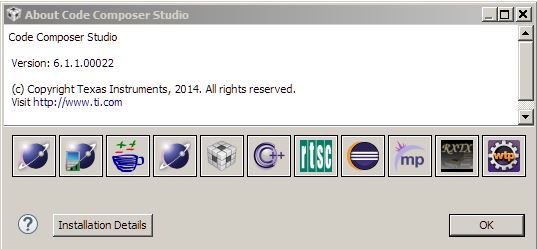

The screen shot you sent looks suspicious. Go to the Help->About menu and post a screen shot. It should look something like this:

Regards,

David

0 hamid over 9 years ago in reply to David M. Alter

Intellectual 890 points

Hi David,

I have the same.

0 hamid over 9 years ago in reply to Gautam Iyer

Intellectual 890 points

Hi Gautam,
Yes I was not in Active Debug mode.
Thank you for your support.

0 David M. Alter over 9 years ago in reply to hamid

TI__Guru 61235 points

Hamid,

Was scratching my head here, and finally figured out what is going on. You seem to be using the "C/C++" perspective. I've never used this perspective myself, and it seems to have some unique menus (which is what was throwing me off). You need to change to one of the other perspective. As Gautam said, typically you would be in Debug perspective when doing a graph. Go to Window->Open_Perspective->Other, and choose Debug from the menu.

Regards,

David

0 hamid over 9 years ago in reply to David M. Alter

Intellectual 890 points

I was not in Active debug mode. it's working now.
Thank you for your support

0 hamid over 9 years ago in reply to David M. Alter

Intellectual 890 points

David,
is the graphic will be updated in real time or I have to be in break mode ? frequency of updating ?

Thank you
Hamid

0 hamid over 9 years ago in reply to hamid

Intellectual 890 points

also how to connect a variable or array to the graph ?

0 Gautam Iyer over 9 years ago in reply to hamid

Guru 192875 points

Great! All you need to do is right click on the variable and click on "Add to graph" option. Later you need to enable "Continuous refresh" button.

Regards,
Gautam

0 David M. Alter over 9 years ago in reply to hamid

TI__Guru 61235 points

hamid said:
also how to connect a variable or array to the graph ?

When you create the graph, there is a start address box in the graph properties. Put the address (symbol) there.

Regards,

David

0 hamid over 9 years ago in reply to David M. Alter

Intellectual 890 points

Thank you David and Gautam for your support
