TMS320F28069M: Help, I bought the LaunchPad-F28069M and BOOSTXL-BUCKCONV board, there is lack of a capacitor C7, I don't know if it is OK.

Mark_Lu

Part Number: TMS320F28069M
Other Parts Discussed in Thread: BOOSTXL-BUCKCONV

Help, I bought the LaunchPad-F28069M and BOOSTXL-BUCKCONV board, there is lack of a capacitor C7, I don't know if it is OK. see the picture,

over 4 years ago

0 tlee over 4 years ago

TI__Guru 62975 points

Mark,

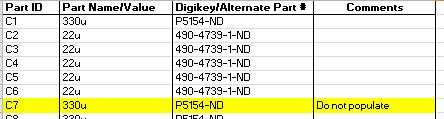

That is expected. The BOM describes C7 as not populated:

-Tommy

0 Mark_Lu over 4 years ago in reply to tlee

Prodigy 180 points

tlee,

Thanks for your reply, if you can tell me why there do not need the C7, I will thank more.

0 tlee over 4 years ago in reply to Mark_Lu

TI__Guru 62975 points

Mark,

The engineer had included the footprint in the board design just in case it might be needed, but determined that it was not necessary after evaluating the hardware. The schematic should have been updated to indicate DNP for C7 according to our best practices, but this action was not done properly in this case.

-Tommy

0 Mark_Lu over 4 years ago in reply to tlee

Prodigy 180 points

tlee,

I get it, thanks again.
