Some questions about InstaSpin technology for electric vehicle application.

chao yang

Other Parts Discussed in Thread: MOTORWARE, DRV8301

Q1:I found there is no speed loop only current closed-loop control on electric vehicle motor drive,so I do not know why.

Q2: Taking into consideration of security,I have to use encoders.I have originally been intended to control motor by InstaSpin-motion technology.It cost me a long time to design my board.But now I heard there is no speed loop for electric vehicle application.That means I can only use code examples of current loop control.However in motorware,the use.h file for foc does not have code examples with encoders.So I do not know if instaspin technology suits for electric vehicle application.

over 11 years ago

0 ChrisClearman over 11 years ago

TI__Guru** 119680 points

A1: Most electric vehicle drives are just torque control. The speed loop is controlled by the driver or "cruise control". When a throttle/pedal is engaged you are just requesting a % of maximum torque.

A2: There really isn't any benefit to using InstaSPIN for sensored torque control. The advantages for InstaSPIN are in sensorless (FAST) and complex speed/position (SpinTAC suite). Your application would use neither.

You can use proj_lab12 (speed control + encoder) and just follow the code example from 05a to disable the speed controller (in this case SpinTAC speed controller). This will allow you to provide an Iq_Ref_A as the torque command.

0 chao yang over 10 years ago in reply to ChrisClearman

Expert 1620 points

Hello,Chris.

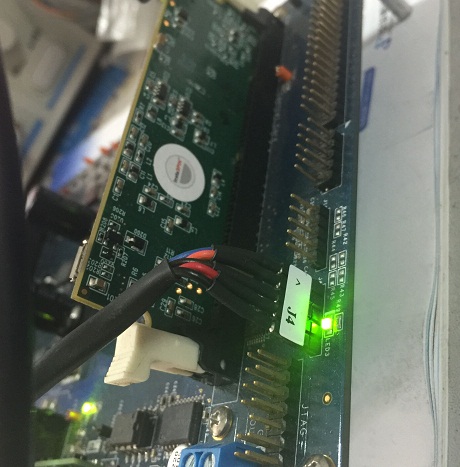

I did experiments on DRV8301-69M-KIT and used motor:Teknic M-2310P-LN-04K.

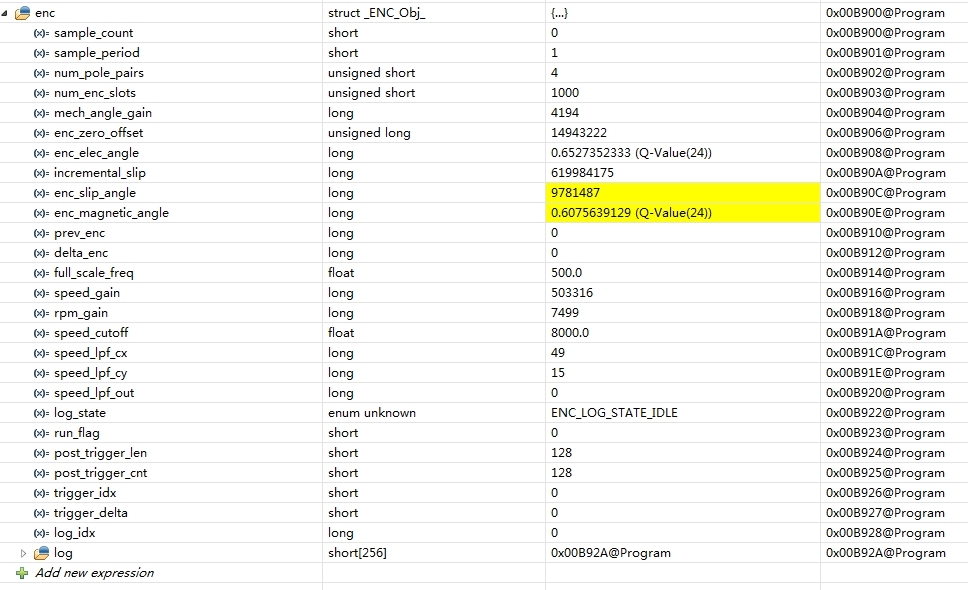

I have modified the code of lab12b according to lab5a.It has become sensored torque control.

The motor run well with sensored torque control.

But I found motor can not produce a torque when I pinched the shaft of motor by my hands(make speed =0).

I do not know why.Are there some mistakes in my modified code?

Fullscreen lab12b.c Download
