LAUNCHXL-F28069M: F28069M SPI Baudrate / Motorware Lab 3a

Part Number: LAUNCHXL-F28069M
Other Parts Discussed in Thread: MOTORWARE, C2000WARE, CONTROLSUITE

Hello,

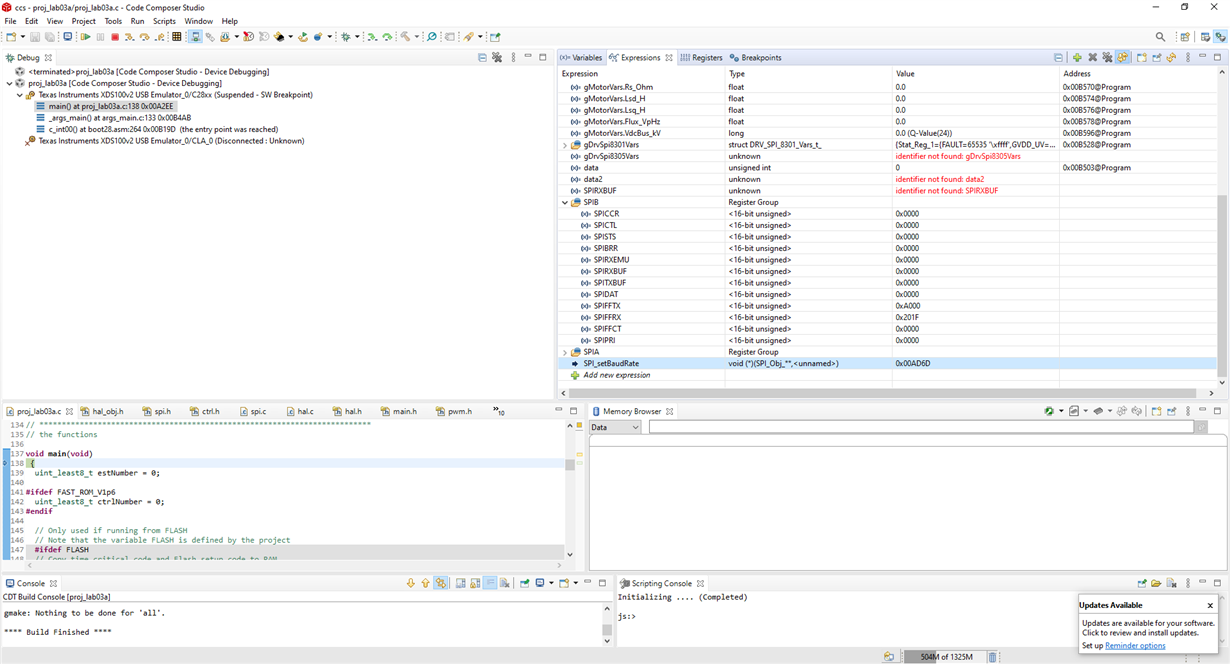

I am trying to use the SPI B in Motorware Lab 3a at the F28069M-Launchxl with a MSP432401R. The MSP is the Masterdevice and the F28069M the Slave. The MSP Baud rate is set to 500000khz now try to set the F28069M also to this value but i don't know how? I set it to 0x7A120 but get wrong values. Now is the Baudrate when I execute the Programm 0x00AD6D.

void HAL_setupSpiB(HAL_Handle handle)
{
HAL_Obj *obj = (HAL_Obj *)handle;

SPI_reset(obj->spiBHandle);
SPI_disableLoopBack(obj->spiBHandle);
SPI_setMode(obj->spiBHandle,SPI_Mode_Slave);
SPI_setClkPhase(obj->spiBHandle, SPI_ClkPhase_Delayed);
SPI_setClkPolarity(obj->spiBHandle,SPI_ClkPolarity_OutputFallingEdge_InputRisingEdge);
SPI_disableTx(obj->spiBHandle);
// SPI_enableRxFifo(obj->spiBHandle);
// SPI_enableRxFifoInt(obj->spiBHandle);
// SPI_setRxFifoIntLevel(obj->spiBHandle, SPI_FifoLevel_2_Words);
// SPI_enableTxFifoEnh(obj->spiBHandle);
// SPI_enableTxFifo(obj->spiBHandle);
// SPI_setTxDelay(obj->spiBHandle,0x0018);


SPI_setBaudRate(obj->spiBHandle,(SPI_BaudRate_e)(0x7A120));


SPI_setCharLength(obj->spiBHandle,SPI_CharLength_8_Bits);
SPI_enableInt(obj->spiBHandle);
// SPI_setSuspend(obj->spiBHandle,SPI_TxSuspend_free);
SPI_setTriWire(obj->spiBHandle, SPI_TriWire_ThreeWire);
SPI_enable(obj->spiBHandle);
// SPI_resetRxFifo(obj->spiBHandle);

return;
} // end of HAL_setupSpiB() function

  • It seems the value for SPIBRR is not correct. Please refer to the technical reference manual of F2806x, you should use the LSPCLK as SPICLK to calculate the SPIBRR. The SPI in motorWare is used as the master, you might refer to the example in C2000Ware or controlSUITE about how to configure the SPI as a slave.
