CCS/RM46L850: spike in het output

rock

Part Number: RM46L850

Tool/software: Code Composer Studio

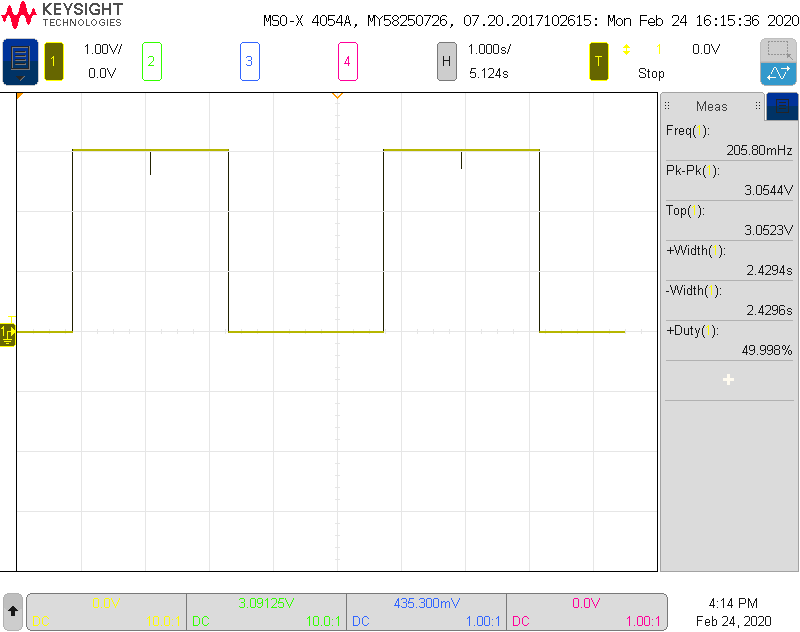

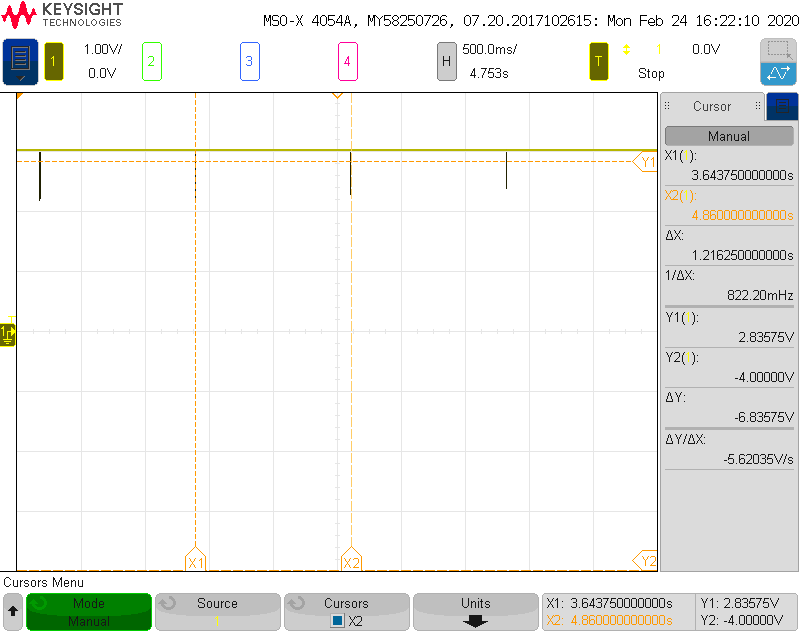

PFA. here you can see spike, which is coming from HET pins.(for PWM & active high signal)

can any one please guide me, why it is there and how to resolve this ??? thanks

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------//---------------------------

over 4 years ago

0 QJ Wang over 4 years ago

TI__Guru**** 186196 points

Hello Rock,

Which EVM are you using for this test? Did you see spikes on all the HET pins? Did you see the spikes at HET pin if the PWM output is disabled?

0 rock over 4 years ago in reply to QJ Wang

Intellectual 760 points

Hi QJ

1. TMS570x/RM4x LaunchPad

2. yes

3. yes, even in power source 3.3/5 volt DC I m able to get spike.

How to overcome, not getting.

thanks for support.

regrds

rock

0 rock over 4 years ago in reply to rock

Intellectual 760 points

Hi all

Can anybody help me for resolving this issue.

thanks for support

regards

Rock

0 QJ Wang over 4 years ago in reply to rock

TI__Guru**** 186196 points

Rock,

I just measured the 3.3V, 5V on two of my launchpads. Both 3.3v and 5v are very clean. I think the spikes may be caused by other equipment around the launchpad.
