EVM430-FR6043: USS configuration for a 1MHz sensors

Hi,
I was trying to set it up for 200kHz transducers. Uploaded the code using CCS, gas demo. In USS loaded the C:\ti\msp\UltrasonicGasFR6043_02_30_00_01\examples\mtr_gui_config\Config_gas_200khz. Gave "request update", I am getting error "135 Algorithm DToF - Shift value was greater than maxSampleShift" so i checked the forum and changed the USS_userConfig.h
"#define USS_ALG_MAX_SAMPLE_SHIFT 40 "still getting same error.

Hi,

The error code 135 usually caused by not capturing a proper receive signal. You can check on the ADC capture window for the receive signal first. Then you might need to adjust these parameters to get a better receive signal. You can follow this guide as reference. https://dev.ti.com/tirex/explore/node?node=A__AURAjHTDa0oVdd-2UTgIEQ__MSP430-ACADEMY__8HaEUeq__LATEST

Best regards,

Cash Hao

Hi,

This is the ADC signal i get when the sensors are connected to the board. And you can see the errors are getting populated continuously.
I have been referring to the above provided document still getting the same errors.

cont-capture-05_04.csv

this is the continuous capture csv file attached.

Thank you

Vishnu KV

Hi,
So i have to connect the J5 and J6 to oscilloscope ?

I am just getting noise at J5 and J6

Hi,
When i checked the AFE_CH0_IN i am getting this

Hi,

So, there is nothing on J5/J6 and also nothing on AFE_CH0_IN?

1. Check on the transmit side: Can you disconnect the transducer and probe on the J5/6. You should observe the excitation signal there.

2. If there is valid excitation signal, and there is no receive signal observed. The issue could be related the pipe and transducer. You can send a picture of your test setup then.

Best regards,

Cash Hao

Hi,
This is the signals i am getting when i probe at J5 and J6 images are attached in order

Right now i don't have the pipe with me. Once i have received the pipe i'll share the setup image.

Thank you

Vishnu K V

Hi,
Sure, i will give you an update by the end of the day because i will receive the 3D printed pipe in sometime.

Is the excitation signals okay ?

Thank you

Vishnu KV

Hi,
Yes sure, sorry about the last image .

Thank you

Vishnu KV

HI,

It looks weird to me. Have you disconnect the transducer first and then measure the signal?

Best regards,

Cash Hao

Hi,

Yes i have disconnected the transducers, kept probe on J5 .

Thank you

Vishnu KV

Hi,

It seems you are measureing the wrong signal.

Best regards,

Cash Hao

Hi,
Okay, i have connected the wrong pin for ground.
I have changed it and the signals are observed on the oscilloscope.

Thank you

Vishnu KV

Hi,

It still looks strange. Why there is still so much noise.

Best regards,

Cash Hao

Hi,
Let me change the channel, probe and see. Give me sometime .

Thank you

Vishnu KV

Hi,
I changed the port and channel, still getting the same signal .

Is there anything else i can do ? I have uploaded the demo gas code via CSS.

Thank you

Vishnu KV

Hi,

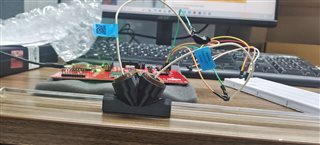

Sorry for the delay , i just received the pipe . Even after placing the sensors on the pipe i am getting the same kind of ADC signals .

Thank you

Vishnu KV

Hi,

At least, there is something in the ADC capture window now. Still need use oscilloscope to check the signal on J5/6 and AFE_CH0_IN. You should get a similar signal like the figure I shared before.

About the noise issue, it could relate to the USB power supply. Do you have a battery or a clean supply which can power the board from below port?

Best regards,

Cash Hao

Hi,
Yes i do have external power supply. I will connect the same and give you an update. How much voltage and current i should set on the regulated power supply ?

Thank you

Vishnu KV

Hi,
I have changed the USB connector and captured the ADC. I will try the same with the external supply.

Thank you

Vishnu KV

Hi,

It looks better with external supply. 3.3V with a limit of 300mA should work.

Can you share the picture using an oscilloscope to capture those signals?

Best regards,

Cash Hao

Hi,
Yes sure . I have a doubt on the external supply method, when the voltage is set to 3.3 V and 300mA the board should show any LED indications ?

Because when i set the above mentioned values i don't see any LED indications on the board. I can see LED indications only when the above said values are set on the RPS and the USB is connected . Is it supposed to work like that ?

Thank you

Vishnu KV

Hi,

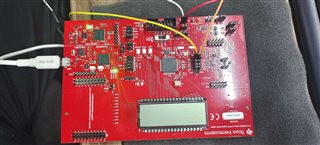

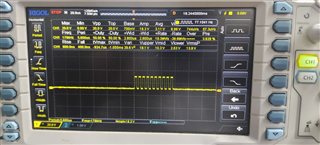

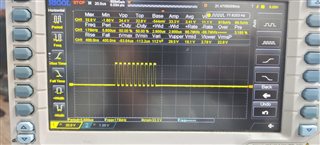

I have set the voltage and current like you have suggested, connected the J5,J6 and AFE_CH0_in the CRO this is the signals that can observed .

Thank you

Vishnu KV

Hi,

The excitation looks correct now. And for the AFE_CH0_IN you will need to connect with the transducer and check.

The LED indicators should perform the same with the USB power supply or the external supply. You can still connect with the USS GUI when using the external power supply, right? Then no need to worry about it.

Best regards,

Cash Hao

Hi,
I have used a trans-axial pipe setup to hold the sensors and this the ADC i am getting.

Secondly i have used the v or reflective type pipe setup and this is the output signal observed.

I think we still have some noise in both these signals right ? Is there any way to reduce the same ?

Thank you

Vishnu KV

Hi,
The oscilloscope is placed at the J9 pin 4(AFE_CH0_IN) and GND .

This is what can be observed on that pin.

Thank you

Vishnu KV

Hi,

Please connect with transducers when measuring AFE_CH0_IN signal.

Best regards,

Cash Hao

Hi,
Okay, here is the updated one with transducers connected.

Thank you

Vishnu KV

Hi,

The signal does not look correct. What happens to the pipe? Why there is a tube goes through the pipe? What is the application? Is it a gas meter or a water meter?

Best regards,

Cash Hao

Hi,
It is a gas meter, the gas flowing through the pipe is to be checked.

yes, there is a tube inside the pipe.

Thank you

Vishnu KV

Hi,

So the transducer is not directly touches the measured gas directly. The gas actually goes inside the white tube?

Best regards,

Cash Hao

Hi,
Yes, the gas is going through the tube. The tube will interfere with the signals?
Thank you

Vishnu KV

Hi,
Okay understood. So i can better results without the tube ? Yes, my idea of the pipe was to hold the transducers and measure the flow. So after our conversation yesterday i tweaked a few things around and got some output let me share with you .

The above one is for the trans-axial setup without the tube inside the pipe.

And this is the one for the reflective type setup.

So now i can monitor the air flow in the pipe using the "waveform" tab ?

Thank you

Vishnu KV

Hi,
So, now with the help of waveform tab i can monitor the amount/ volume of gas flow through the pipe ?
One more query on the tube setup for monitoring the flow, there is no way i can work around that setup to get a similar ADC signal even if i use glass tube ?

Thank you

Vishnu KV

Hi,
I want to go back to the first query on 1MHz sensor. In data sheet for the MSP430FR604x shows it can interface up to 2.5 MHz ultra sonic sensors. So only the IC does not the evaluation board ?

Thank you

Vishnu KV

Hi,
Thank you.
