MSP430F477: HART communication using MSP430's integrated DAC

U-SK

Genius 5840 points

Part Number: MSP430F477
Other Parts Discussed in Thread: TIDM-01000, TIDA-01504

Hello.

Is it possible to develop HART communication by using integrated DAC of MSP430F477?

Do you have any customers who was able to develop HART Communication by using integrated DAC of MSP430F4xxx series?

Regards,

U-SK

over 4 years ago

0 Xiaodong LI over 4 years ago

TI__Mastermind 20025 points

It is possible. software solution on DAC and OA Peripherals is needed on HART modem.

FR2355 with 4 SAC (DAC12 and OA) is more suitable on this solution.

0 U-SK over 4 years ago in reply to Xiaodong LI

Genius 5840 points

Hi Xiaodong Li,

Thank you for your reply.

If I develop TIDM-01000 using MSP430F477, Is external opamp IC necessary?

Regards,

U-SK

0 Xiaodong LI over 4 years ago in reply to U-SK

TI__Mastermind 20025 points

Hi U-SK

Yes. I think so. There is no PGA/OA in MSP430F477 to convert voltage to current after DAC. I propose you can consider FR2355 as TIDM-01000 adopted

0 U-SK over 4 years ago in reply to Xiaodong LI

Genius 5840 points

Hi Xiaodong Li,

Thank you for your reply.

HART Communication succeeded using MSP430F477.

I would like to know about 49.9kΩ resister( R4 ) in TIDA-01504.

I randomly choosed 47kΩ resister in my board and Hart communication happened to succeed.

Could you tell me how to determine proper resister value of R4?

Regards,

U-SK

0 Xiaodong LI over 4 years ago in reply to U-SK

TI__Mastermind 20025 points

Hi U-SK

Could you please comment source of this schematics, I think it is not from TIDM-01000. and I will be out of office in the next week. I am afraid that my reply of you thread will (maybe) be from Aug 30 (the next Friday).

0 U-SK over 4 years ago in reply to Xiaodong LI

Genius 5840 points

Hi Xiaodong Li,

Thank you for your reply.

I am referring TIDA-01504.

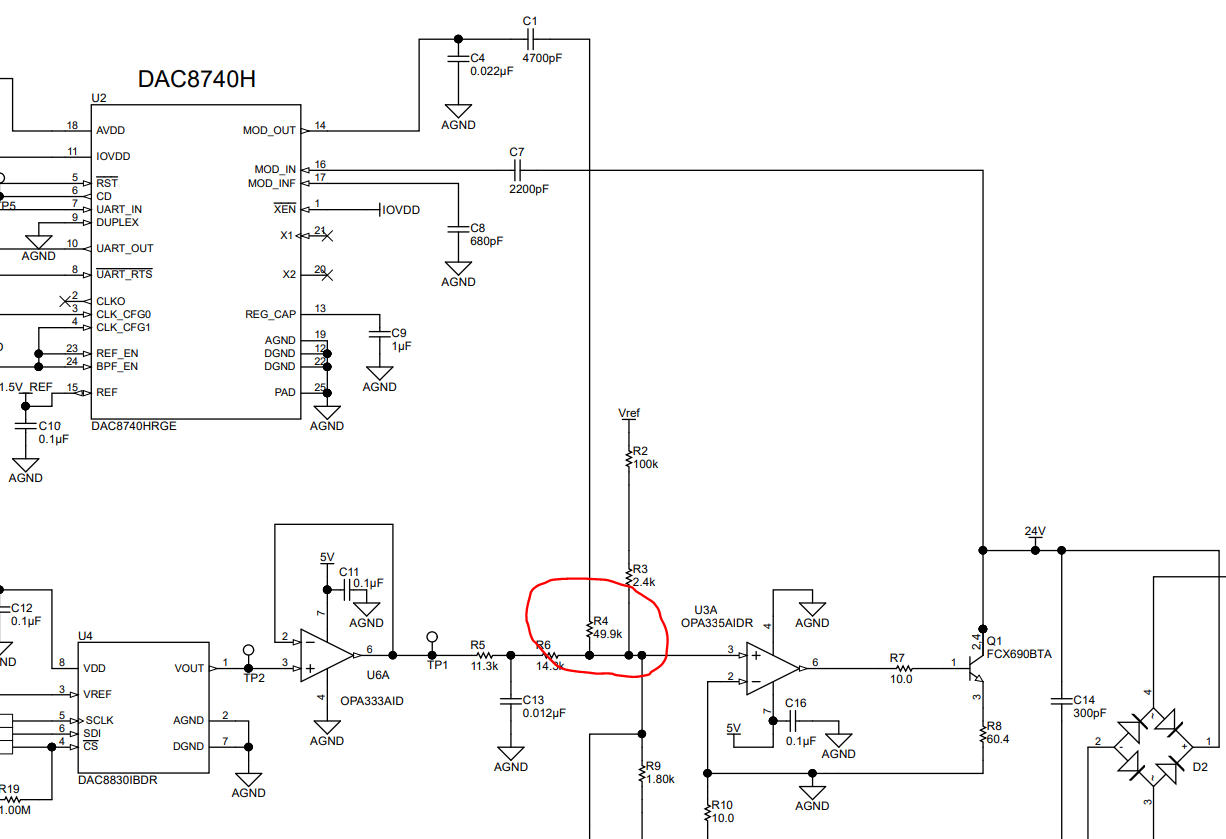

And I attached schematic file as below.

tidrux6.pdf

Regards,

U-SK

0 Xiaodong LI over 4 years ago in reply to U-SK

TI__Mastermind 20025 points

Hi U-SK

There is the explanation of the value of R4 on TIDA-01504 manual and DAC874xH DS

Hope it is helpful to your question.

0 Xiaodong LI over 4 years ago in reply to Xiaodong LI

TI__Mastermind 20025 points

Hi U-SK

Hope your question has been solved.
