MSP430FR6047: AFE and or USS missing?

Laurent van Poppelen69

Part Number: MSP430FR6047
Other Parts Discussed in Thread: MSP430FR6043

Hi,

I had a look at the block diagrams of both MSP430FR6043/47. I wondered why I don't see the USS module in the MSP430FR6047?

MSP430FR6047 - Functional Diagram

rgds,

Laurent

over 5 years ago

0 Lixin Chen1 over 5 years ago

TI__Expert 7015 points

Hi,

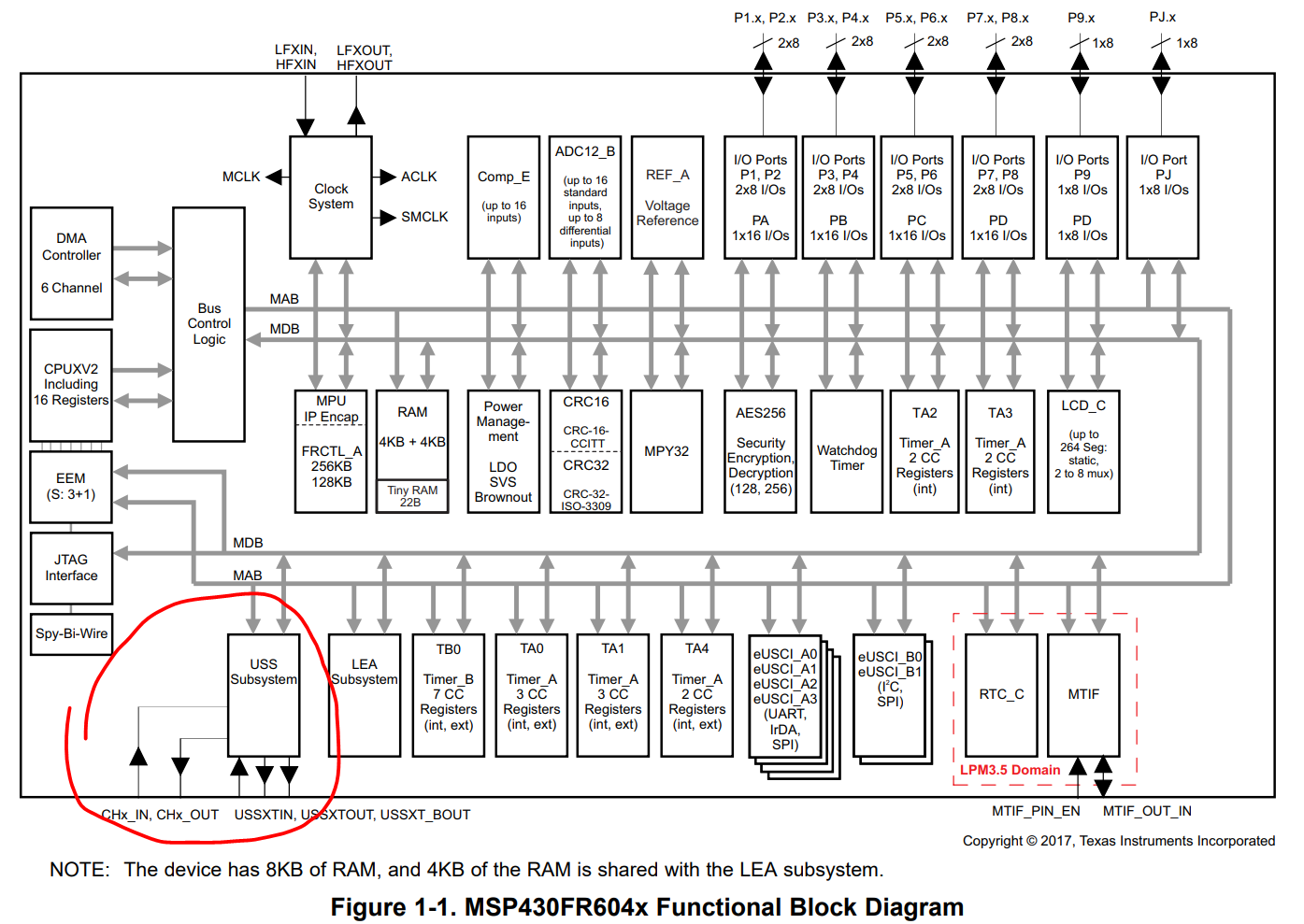

You are capturing the MSP430FR603x block diagram of figure 1-2 in which there is no USS. You can find the USS subsystem in MSP430FR604x block diagram in Figure 1-1. In table 3-1, there are definitions for different part numbers.

Thanks,

Lixin

0 Laurent van Poppelen69 over 5 years ago in reply to Lixin Chen1

Expert 1020 points

Hi,

if I look in the datasheet I see the correct picture. However, if I search the internet by typing "msp430fr6047<enter>" ad choose the expected result it goes to the product page of the MSP430FR6047 but shows the wrong diagram! It's a glitch!

rgds,

Laurent
