MSP430FR5964: Abnormal read operation of FRAM under low temperature environment

Sh.Sasaki
Guru 13625 points
Part Number: MSP430FR5964
Other Parts Discussed in Thread: MSP-GANG, MSP-FET

Hi experts,

There is an error in the read operation of FRAM in a low temperature environment.
Is there any errata regarding FRAM Read operation under low temperature environment?

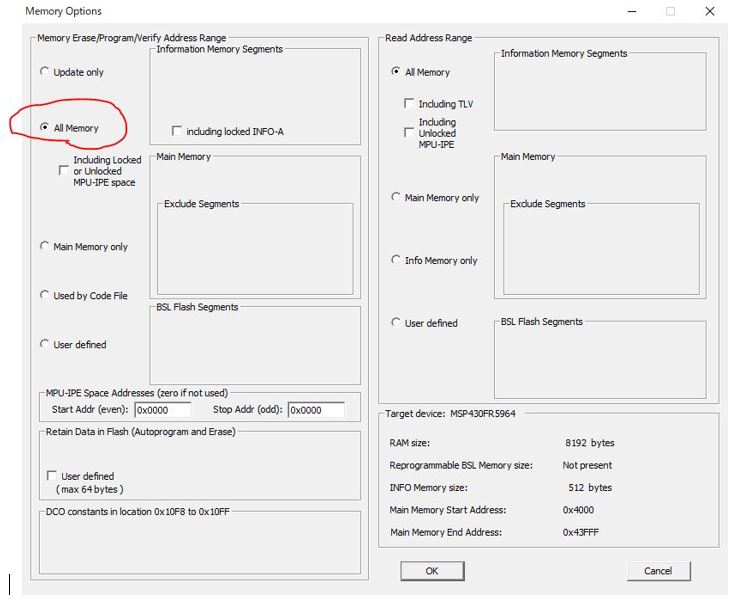

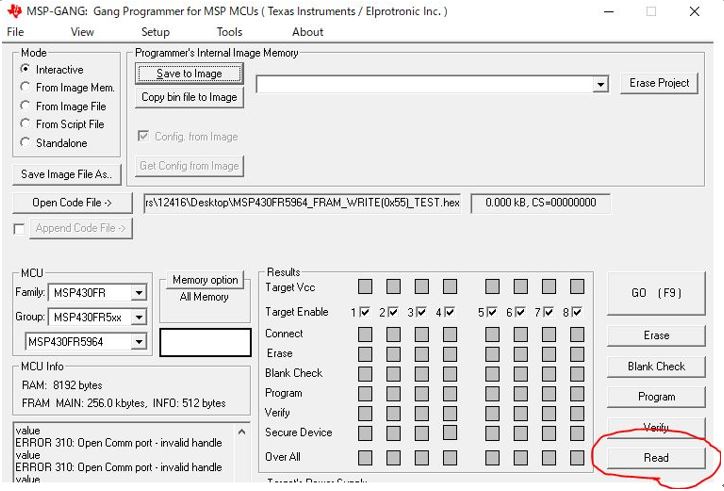

We tested in the following way.

1. Put my customer's MSP430FR5964 board in a constant temperature bath to 0 ℃.

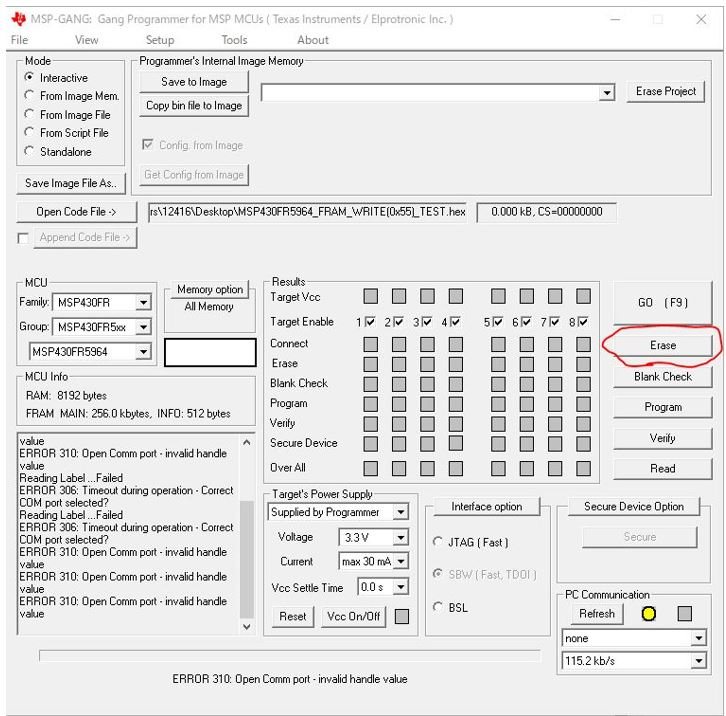

2. Erase FRAM in this state

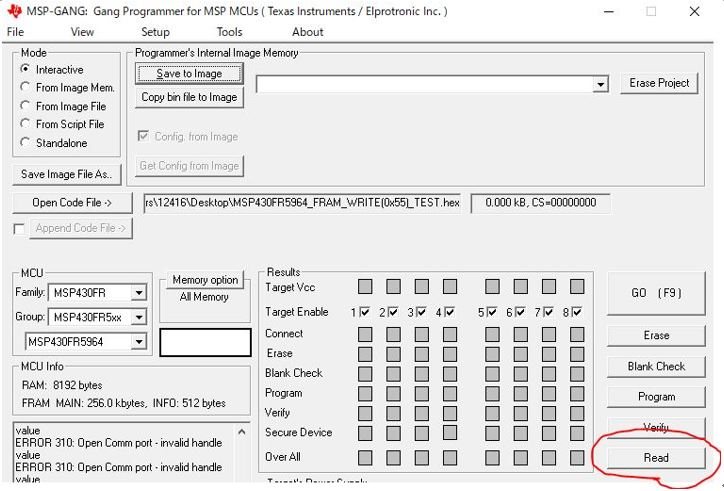

3. Read the FRAM data after Erase

Then, 0xFFFE was read as follows.

Read_error.txt
