SIMPLELINK-MSP432-SDK: Launchpad technical drawings

Prodigy 20 points

Replies: 3

Views: 54

Part Number: SIMPLELINK-MSP432-SDK

Was looking for the techical drawings (components placement and dimensions) of the MSP432 launchpad but couldn't find anywhere, not even in the user's guide, wondering if anyone knows where I can find it.

  • Hello,



    If my post helped solve your issue, please click on the   This resolved my issue  button.

    Winter,

    Search E2E! Your questions may already be answered!

    TI Cloud Tools             MSP Product Page

  • In reply to Winter Yu:

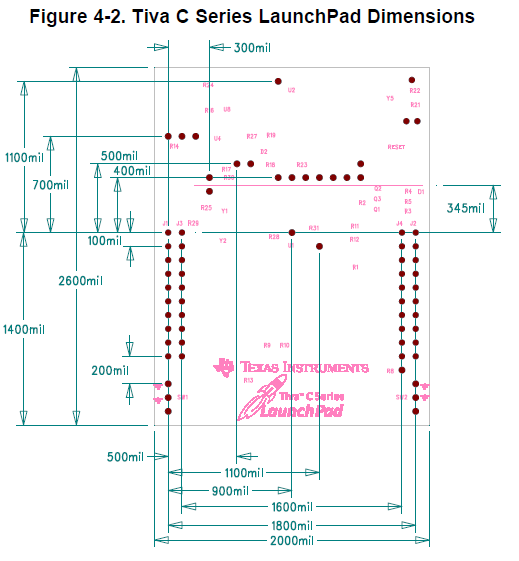

    Thanks for the reply, this helps but I was looking for something more like the picture(TM4C123 launchpad) below

  • In reply to Arthur Takahashi:

    You can get the above drawings by import the gerber file into Altium Designer.

    1.File->New->CAM Document

    2.File->Import->Gerber



    If my post helped solve your issue, please click on the   This resolved my issue  button.

    Winter,

    Search E2E! Your questions may already be answered!

    TI Cloud Tools             MSP Product Page
