EK-TM4C123GXL: BOOSTXL-SENSHUB compatibility

Intellectual 400 points

Replies: 1

Views: 216

Part Number: EK-TM4C123GXL

Hi,

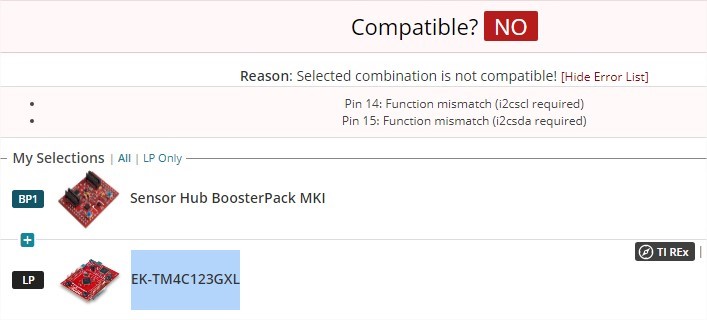

I am confused, the BOOSTXL-SENSHUB user manual says that it is intended to be used with Tiva™ C Series TM4C LaunchPad  board (EK-TM4C123GXL), but the BoosterPack Checker web page mark them as NOT COMPATIBLE (check the image attached).

Which one is right? Can I use the BOOSTXL-SENSHUB with my Tiva Launchpad or not?

  • Hi Javi,

      If you read the EK-TM4C123 user's guide, you will find the below table where the MCU's PB7 and PD1 are both tie together via a 0ohm resistor and they are brought to the booster connector J2.6. So it will be compatible. Please give a try and let me know the result.

    regards,

    Charles
