DRV8245-Q1: the different between PDRV8245HRXZQ1 and PDRV8245SPWPQ1

Qi Liu

Intellectual 2560 points

Part Number: DRV8245-Q1

Hi, support team

My customer has the questions as follow:

Could you tell me the different between PDRV8245HRXZQ1 and PDRV8245SPWPQ1?
Are the differences only package and pin numbers?
Do they have the same function?

There's a text in DRV8245-Q1's datasheet:
"The devices are available in two interface variants - hardware (HW) and SPI.
SPI interface device has two variant choices, "P" for externally supplied logic supply, and "S" for internally generated logic supply. The SPI variant offers more flexibility in device configuration and fault observability."
What's this meaning?

Thanks so much.

Best regards,
Yuki

over 2 years ago

+1 Wang5577 over 2 years ago

TI__Guru 56650 points

Hello, Yuki,

Following the "8425", the "H" means hardware interface; the "S" means the SPI interface. "RXZ" or "PWP" is for the device package/footprint.

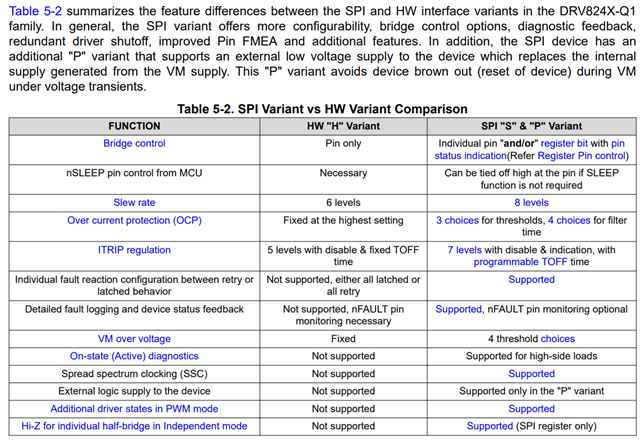

According to the datasheet table 5-2, SPI variants are more flexible.

"externally supplied logic supply" or "internally generated logic supply" points out VDD source, externally or internally.

Regards,
Wang Li

0 Qi Liu over 2 years ago in reply to Wang5577

TI__Intellectual 2560 points

My customer has the reply as follow:

Thanks for your helpful response.

Can I suggest that you add a nomanclture section to the datasheet, it is super unclear as it stands.

+1 Wang5577 over 2 years ago in reply to Qi Liu

TI__Guru 56650 points

Hello, Qi,

Let me pass the feedback to our system engineer.

Thank you for your feedback.

Regards,

Wang Li
