DRV8350S-EVM: High-side gate charge glitch and GDUV fault

Hi Ignacio ,

Thanks for posting your question to the e2e forum -

The team is out of office for holiday timeframe, and will return to office on 1st week of January.

We will try to investigate this behavior around then and provide a response with suggestions/feedback on your described problem

Best Regards,
Andrew

Hi Ignacio,

Also, just to follow up on some of the other items discussed:

• With a longer deadtime it gets slightly worse. When there exists a small beginning of a shot-through the glitch almost disappears (obviously not a solution).
• Lowering the IDRIVEP_HS down to 300 mA seems to be the only effective solution, but the slow charge is limiting the small our minimum ON time can be.

What's the current rise time that you have?

• from the waveforms provided, it looks like T_rise is under 100nSec at the moment, which is very aggressive timing
• if there are spikes in your gate drive waveforms (GHx, GLx, SHx) then you may want to take a look at the links below

1. Something that can be done to improve ringing at SHx would be to add RC snubbers parallel to HS and LS MOSFETs.
2. Gate drive signal ringing may be inherent to IDRIVE settings that are more than what's meant for the MOSFET's particular Qgd

Smart Gate Drive app note: https://www.ti.com/lit/an/slva714d/slva714d.pdf

IDRIVE setting selection: https://e2e.ti.com/support/motor-drivers-group/motor-drivers/f/motor-drivers-forum/796378/faq-selecting-the-best-idrive-setting-and-why-this-is-essential

Please let us know if this information answers your questions, and if you require any additional assistance. Thanks!

Best Regards,
Andrew

Hi Andrew,

Thanks a lot for such a complete and rigorous answer. I had to leave the project for some weeks, but now I'm back on track. Let me copy-paste your qüestions and try to respond to them one by one:

I have reviewed the information and have some feedback to help explain the behavior you're seeing on your system:

1. In the case where you are seeing this HS Vgs behavior (voltage sag/dips during higher IDRIVE load),
   1. Question1: Are you seeing this on the DRV8350S-EVM (TI official EVM) itself, or is this data collected from your own system design based on our EVM?
      1. just want to get an idea of whether layout might be a root cause here
         • I'm measuring over our self-designed and manufactured PCB where the DRV8350S-RTV is included. I'm sorry for the confusion, I selected the DRV8350S-EVM because no other option was available from the forum web form. We do not have either have tested in the past the evaluation board.
         • The layout could be the root cause (though I would say we are pretty experienced in routing this kind of systems), and I can send further information for your evaluation through private channels if you believe it's gonna help us solve the issue.
2. The behavior you are sharing makes sense, and there are a few common root causes for this

   1. the suspected root cause is indeed the charge pump current capability in providing current for the gate drivers to operate
      1. when the charge pump voltage is impacted, you'll see the HS Vgs and LS Vgs voltages also impacted as a result
      2. this then goes on to impact your phase outputs SHx at the power stage, if the MOSFETs cannot switch properly
         • Understood
   2. the charge pump capability is impacted by your systems' DC bus voltage (aka VM)
      1. VCP can supply up to 25mA of average gate drive current to the MOSFETs. This gets lower if your VM is reduced, like you observed
         • In our design, VM is NOT connected to the DC bus (VDRAIN). VM receives 9.4 V from an on-board DC/DC (with 10 µF, 35 V, X7R as output capacity + 100 nF, 25 V, X7R right next to the VM pin). The DC bus is rated up to 60 V.
         • What I observed is the glitch understudy getting clearly deeper with the increase of the DC bus. In fact, it does hot happen under 43 V (tested with a light phase current of 1 A leaving towards the motor).
         • What is obviously relevant is the fact we are limited to only 10 mA VCP by having a 9.4 V supplying VM. The MOSFET's Vgs is rated 20 V (max. absolute), so I think we can try to increase VM a bit to see if this solves the issue.
      2. the amount of current you'll need in your system is related to the peak IDRIVE setting, MOSFET Qgd spec, switching frequency, and # of FETs/gates
         • Limiting the HS source gate current does help. However, to get rid of the glitch at max current/max voltage we have to decrease it down to 300 mA, which is acceptable but not desirable (I can work with this, but I'd like to improve this number).
      3. as you see in your results, the gate voltage dips are more severe when the load on the charge pump is too high
         • Being the max. VCP current AVERAGE explains why it is clearly proportional to the PWM frequency.
         • However, I still don't get why this does not happen to the low-sides. Could it be related to the fact that the HS gate "steady-state" voltages decrease when the DC bus voltage increases, getting as low as <5 V, while the low-side gate voltages remain barely modified? Could increasing the VM voltage help here too?
   3. the charge pump effectiveness can be impacted by the charge pump capacitors and layout
      1. for example, if your caps suffer from voltage de-rating then their effective value will be reduced. I think your caps selected in the info provided should be okay though
         • Does the recommended values of 47 nF and 1 uF consider any DC bias, thermal or aging derating?
      2. layout also has an impact. If your caps are very far away from the DRV device or are impacted by parasitic inductance from going through vias or narrow PCB traces, then their effectiveness will be reduced. We advise that any caps for the DRV device should be placed as close as possible to the IC, with proper thick traces (15 mils) and PCB 'teardrops' while also being on the same PCB layer as the DRV device (no vias in the signal path).
         • I hope the following capture is self-explanatory:
         •
   4. the gate drive performance is also impacted by gate drive traces
      1. ideally, you want to avoid having very long traces between DRV device pre-driver outputs and the MOSFET gate inputs
         • The longest trace (CPH) is 2.2 mm.
      2. also want to use thicker gate drive traces to avoid parasitics. We advise 15-20 mils thickness
         • These 2 traces are 0.3 mm thick. Bottom and Mid-8 layers' copper are 42 µm (1 oz) separated by 65 µm prepreg.
      3. also avoid going through multiple PCB layers (vias impact signal integrity) with these traces
         • As seen in the previous image, both go through Mid-8, immediately under BOT layer.

Also, just to follow up on some of the other items discussed:

What's the current rise time that you have?

• from the waveforms provided, it looks like T_rise is under 100nSec at the moment, which is very aggressive timing
• if there are spikes in your gate drive waveforms (GHx, GLx, SHx) then you may want to take a look at the links below

The phase rise time can be as low as 5 ns. The LS gate rise time is certainly a bit below 100 ns. The HS, I'm not sure about it, because the resolution is very bad due to the fact I'm referencing the measurement to GND, and thus subtracting the phase voltage from the gate voltage, which leaves only a few effective ADC bits.

I'm trying out several gate current configurations, including all maxed, to decide where to put the limit.

1. Something that can be done to improve ringing at SHx would be to add RC snubbers parallel to HS and LS MOSFETs.
   • We typically try to avoid snubbers as much as possible. This product targets a very high level of miniaturization yet at the same time must be very efficient. RC snubbers are bulky and, essentially, energy dissipators. We will only include them as a last resource.
2. Gate drive signal ringing may be inherent to IDRIVE settings that are more than what's meant for the MOSFET's particular Qgd

So, there is a lot of very valuable information in the documents you linked, thank you very much. I'll try to focus on:

• Evaluating the suitability of our maximum IDRIVE settings
• Increasing the capacity of the charge pump capacitors
• Increasing the VM voltage

If any of those eventually solve the issue, I'll come back to you (it may take a while).

Best regards,

Hi Ignacio,

Sounds good, and thanks for your detailed response!

I'm still catching up on the recent influx of e2e threads assigned to our team, so it may take me a few more days to review it in full for your ongoing questions.

For now, I do think these two are your best bets to improving the system performance

• Evaluating the suitability of our maximum IDRIVE settings
• Increasing the VM voltage

May want to avoid this one (the reason is that the capacitor values in datasheet were selected to match what the charge-pump regulator switching circuit can support across operating conditions. circuit charges flying cap and then transfers that stored charge to the storage capacitor. If cap values change, then it might not be guaranteed that the VCPH voltage can maintain the necessary value for gate-drive voltage to operate properly)

• Increasing the capacity of the charge pump capacitors

Thanks and Best Regards,
Andrew

Hi Ignacio,

Very impressive rise time and frequency ringing at around 450Mhz, I did not know it was possible to switch power Mosfets so fast.

I would check voltage on VCP pin, how it behaves when problem happens.

"What is obviously relevant is the fact we are limited to only 10 mA VCP by having a 9.4 V supplying VM. The MOSFET's Vgs is rated 20 V (max. absolute), so I think we can try to increase VM a bit to see if this solves the issue." - worth of trying, increasing gate voltages would additionally lower RdsOn of Mosfets and lower conductive losses.

"With a longer deadtime it gets slightly worse" - it could suggest that problems are related to Mosfet body diode reverse recovery and ringing caused by that phenomena.

I would also check voltage waveforms on INx pins against GND pin if there is no significant noise when problem happens.

There is significant ringing at around 450Mhz, if I had a handheld 70cm 5W radio I would check if it causes any issues by transmitting with antenna close to PCB. Maybe it is not very scientific method but sometimes it allows to find problems with electromagnetic immunity.

Regards,

Grzegorz

Hi Grzegorz,

Thanks very much for the added inputs on this!

We are glad to see e2e forum community engagement on debugging motor drivers

Best Regards,
Andrew

Hello again,

I have progressed in the implementation of the items previously set, and got to what I think could be a dead end. Specifically:

• Charge pump capacitors: disobeying your recommendations, I tried out changing the VCP-VDRAIN and the CPH-CPL capacitors.
  • My intention was to emulate a capacitor less affected by a DC bias derating, so I increased the recommended capacity by a factor of x1.5 approx. I tried increasing each separately, and then both at the same time, but could see no improvement.
  • Then I tried with a capacitor in the order of x0.5, but only for the CPH-CPL capacitor. Again, I could see no difference, which gives me a clue the problem is definitely not a lack of charge in the charge pump output.
  • Finally, I thought the problem could be in the frequency response of these capacitors, so I added a second, 1 nF NP0 capacitor in parallel to each one (right on top to minimize inductance, 0603 footprint). Again, I could see no improvement.

• Increase the VM voltage to enable greater charge pump average output current: did not work at all. I previously had 9.4 V, to which a limitation of about 10 mA was assumed. With the changes implemented, I now have a voltage of 12 V, to which I expected a limitation of around 20 mA. Although I'm aware that even doubling the average current available could be insufficient for my transistor's gate charge when switching at 200 kHz, the thing is I did not notice any improvement at all:

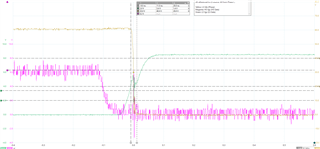

  • VM = 9.4 V, positive current of a nominal magnitude, 60 V, 200 kHz, IDRIVEP_HS = 500 mA
    •
  • VM = 12 V, positive current of a nominal magnitude, 60 V, 200 kHz
    •
  • VM = 9.4 V, positive current of a peak magnitude, 60 V, 200 kHz, IDRIVEP_HS = 400 mA
    •
  • VM = 12 V, positive current of a peak magnitude, 60 V, 200 kHz, IDRIVEP_HS = 400 mA
    •

The last 2 cases are very close to the limit. Any further phase current or any further step in the HS gate current would trigger a gate driver fault. I implemented an SPI retrieval of the fault code and found a couple of cases and responses: VDS_OCP seems to be the typical error (changing the phase or transistor from board to board), more or less regardless of the Peak Gate-Current and the Over Current VDS level, but increasing the OCP deglitch time seems to change the reported error to GDUV.

I'm not sure how to read this behavior... Maybe the phenomenon is the same, but allowed to perpetuate long enough get to cause a GDUV-like scenario? In any case, I measured the phase current, and I'm pretty sure there is no overcurrent in there. But could the overcurrent be actually caused by a cross-conduction (shot-through) small enough to not be destructive, and this be caused by a very weak self-activation of the low-side? I'm trying to make up a sort of hypothesis.

In any case, I've got the feeling the issue is not going to get solved by working in the current direction. I don't think the problem is the charge pump output anymore, but more likely the activation of an HS strong pull-down or even the HS sink channel for some reason.

Does it make any sense to you? Is there any High-Side gate built-in protection that would remain active in the Independent PWM mode, and that could behave in such a way? In this case, could it be related to the Low-Side?

It doesn't go unnoticed to me that the rising edge of the phase voltage goes hand in hand with a severe ringing of the LS gate voltage that, in the more extreme cases, crosses the transistor's Vth. However, due to the instrumentation I'm using (spring ground as a return in the oscilloscope probe), I cannot completely trust the amplitude of this ringing. Although it is already rather small, I will try to minimize the inductance of the probe return even more.

In any case, as I said earlier if no way to improve these 300 mA is found I'll just keep this value as a maximum and move on.

Thanks,

Hi Ignacio,

Thanks for the follow-up in this case, and I will review this information further and try to get you a more detailed response by early next week.

Glad to hear that at least the project can move on even with 300mA, but I'll definitely do my best to answer your latest questions on potential root causes.

Best Regards,
Andrew

Hi Ignacio,

If you take a look a the last two waveforms you can notice that rising edge of LS Vds voltage in its steepest part rises by around 35V in around 2ns (zooming that area would help to estimate rise time better) what gives us around 17V/ns slope. The maximum recommended "Switch-node slew rate range (SHx)" is 2V/ns according to 7.3 table in datasheet. HS gate drivers and probably a couple of more circuits are referenced to SHx voltage inside DRV8350 and may malfunction if SHx voltage slope is too steep.

Regards,

Grzegorz

Hi Grzegorz,

That's a wise appreciation, and I'm aware that we are trying to push the limits a bit with this product.

To your more than reasonable concern, I'll point out that this product is intended to typically work along with way more relaxed slopes. I'm just trying to find the edge, and investigate the degree to which this Si-based power stage can satisfy a GaN-targeted application.

Thanks and regards,

Hi Ignacio,

Thank you for sharing your experience and test results. It was very interesting to learn how fast power mosfets could be driven.

Best Regards,

Grzegorz

Hi Ignacio,

Thanks very much for sharing your latest results from the debug as well, and we'll keep this feedback in mind for our future debugs and new product developments.

Best Regards,
Andrew
