DRV8161: Query on VDSLVL

Sandeep Varma

Prodigy 170 points

Part Number: DRV8161

Tool/software:

Hi,

To use LEVELx-1 limits for Over current protection, it is suggested to give single pulse with duration greater than tVDLLVLFIL

Question1:

What is this duration exactly? if system permits to use minimum 100uS, can i use 100us pulse?

Question 2:

What is the pulse magnitude? Can i use 5V pulse magnitude?

Question3:

Is it single time pulse after Gate driver is powered up? After one pulse, can i make this VDSLVL pin 0V?

Thanks,
Sandeep

0 Akshay Rajeev Menon 2 months ago

TI__Mastermind 24141 points

Hey Sandeep,

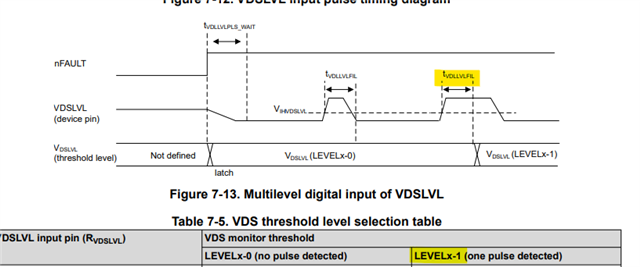

Q1) Please see the image:

Q2) Yes, VDSLVL abs max is 20V

Q3) Let me check up on this more with the team.

Thanks,

Akshay

0 Sandeep Varma 2 months ago in reply to Akshay Rajeev Menon

Prodigy 170 points

Hi Akshay,

For Question 1, If i use 100uS, Will that be ok?
For Question 3, Will wait for your reply.

Thanks,
Sandeep

0 Akshay Rajeev Menon 2 months ago in reply to Sandeep Varma

TI__Mastermind 24141 points

Hey Sandeep,

I am waiting on the systems's engineer to be back in office to confirm this spec. I will provide feedback once he is back.

Expecting to provide feedback b4 EOD tomorrow.

best,

Akshay

0 Akshay Rajeev Menon 2 months ago in reply to Akshay Rajeev Menon

TI__Mastermind 24141 points

Hey Sandeep,

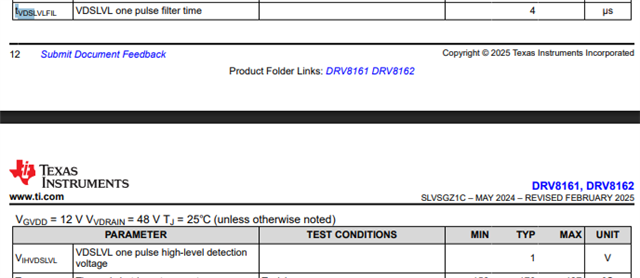

For VDS pulsing we recommend a 10us pulse.

In this configuration you can make the MCU output 0V after the pulse.

Best,

Akshay
