BOOSTXL-POSMGR: possible design error in boostxl-posmgr

Jianning Dong

Part Number: BOOSTXL-POSMGR

Dear all,

I ordered two BOOSTXL-POSMGR boards for a project my students.

We found the resolver channel does not function as expected. The 15 V power supply is shorted immediately after power on.

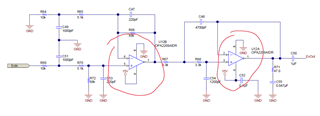

After some debugging it turns out the U12 chip is not wired correctly (see page 3 of the schematics BOOSTXL-POSMGR_Sch.pdf).

Pin 4 should be the GND while Pin 8 should be the 15 V power supply. It's wired the other way around in board.

Have any of you encountered the same issue?

Best regards,

Jianning

over 2 years ago

0 Ramesh Ramamoorthy over 2 years ago

TI__Mastermind 27240 points

Your schematic observation is correct. Will check it in lab and get back to you.

0 Jianning Dong over 2 years ago in reply to Ramesh Ramamoorthy

Prodigy 10 points

Thank you for the confirmation. I'm looking forward to the test result.

0 Ramesh Ramamoorthy over 2 years ago in reply to Jianning Dong

TI__Mastermind 27240 points

The immediate solution is to cut the traces on board and test it out. The other sections of the board are verified to be fine. We dont have a board revision with the fixes. Let us know how you want to proceed.

0 Jianning Dong over 2 years ago in reply to Ramesh Ramamoorthy

Prodigy 10 points

OK. The traces are difficult to cut. I would cut the pins of the OPAMP, then add two jumper wires. But I would appreciate it if there would be a revision to the board to replace the wrong design.

0 Ramesh Ramamoorthy over 2 years ago in reply to Jianning Dong

TI__Mastermind 27240 points

There will be a revision to the board, may be available by year end.

0 Ramesh Ramamoorthy over 2 years ago in reply to Ramesh Ramamoorthy

TI__Mastermind 27240 points

If you have no further queries, can you pls close the thread?
