DRV8873-Q1: nTRIP pull-up and nOL pull-down

Yuto Sakai

Mastermind 6100 points

Part Number: DRV8873-Q1

Hi,

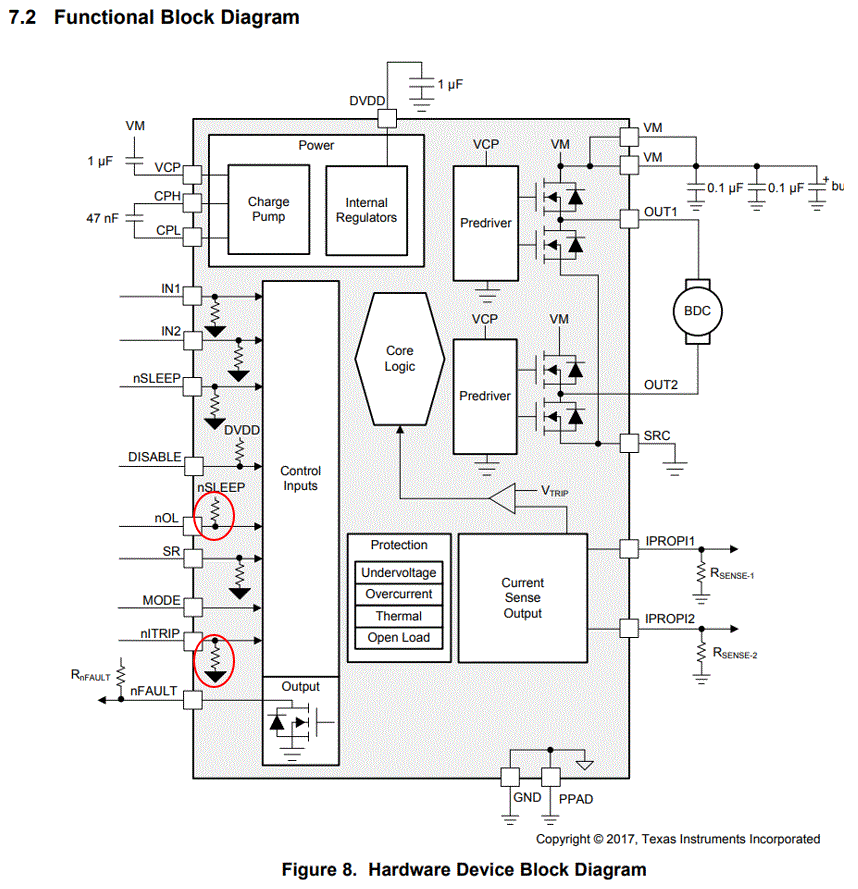

Could you tell me the resistance value used in nITRIP pull down and nOL pull up?

Best regards,
Yuto Sakai

over 5 years ago

0 Rick Duncan over 5 years ago

TI__Guru** 114905 points

Hi Sakai-san,

We will investigate and reply by Tuesday.

0 Rick Duncan over 4 years ago in reply to Rick Duncan

TI__Guru** 114905 points

Hi Sakai-san,

For n_ITRIP, the minimum pulldown value is ~62.5kOhms

For nOL, the minimum pullup value is ~250kOhms.

Because many of these pins have pulldowns, it is recommended to set the inputs low when in sleep mode to reduce current consumption.

This information will be added to a future datasheet update.

0 Yuto Sakai over 4 years ago in reply to Rick Duncan

Mastermind 6100 points

Hi Rick-san,

Thank you for your reply.
I have an additional question.
My customer is trying to design to change settings.
Therefore, They are trying to connect an external pull-up(or pull-down) resistor on the nOL and nITRIP pins.
How much can the sink/source current of the nOL and nITRIP pins flow?

Best regards,
Yuto Sakai

0 Rick Duncan over 4 years ago in reply to Yuto Sakai

TI__Guru** 114905 points

Hi Sakai-san,

The current depends on the input voltage.
For n_ITRIP, the current will be as much as Vn_ITRIP/62.5kOhms assuming n_ITRIP is connected to a low impedance source.
For nOL, the current will be as much as VnOL/250kOhms assuming n_ITRIP is connected to a low impedance source.

0 Yuto Sakai over 4 years ago in reply to Rick Duncan

Mastermind 6100 points

Hi Rick-san,

Thank you for your reply.
I have an additional question.
Our customer want to design to switch the input voltage High /Low of DRV8873H nITRIP and nOL pins.
Therefore, They plan to place 0ohm resistor externally to switch DVDD or GND.

I believe that the method of switching DVDD or GND by adding or removing resistor is no problem. Is it correct?

Best regards,
Yuto Sakai

0 Rick Duncan over 4 years ago in reply to Yuto Sakai

TI__Guru** 114905 points

Hi Sakai-san,

You are correct. There is no problem switching DVDD or GND by adding or removing resistors.
