DRV2605: Operating Mode Consult

Stanley Dai
Expert 5810 points
Part Number: DRV2605

Hi Team,

Do you know which mode of our DRV2605 can produce blow waveform?

B&R,

Stanley

  • 0
    TI__Genius 16930 points

    Hi Stanley,

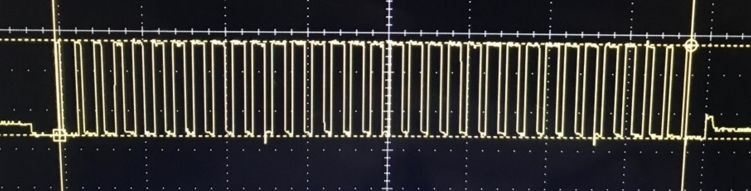

    This appears to be one half cycle of the class D PWM output. from the capture you posted it is not possible to determine the waveform.

    can you provide a capture of the whole waveform (OUTP - OUTN)?

    is this in an EVM? what mode is the EVM in? what cap touch button was pressed?

    if this is in a custom circuit what register writes are made to the device?

    Regards,

    Arthur Brown
