CC1310 Evalution board

Abbas Anwar

Prodigy 130 points

Other Parts Discussed in Thread: CC1310

Hi TI team

I am working on CC1310 development kit

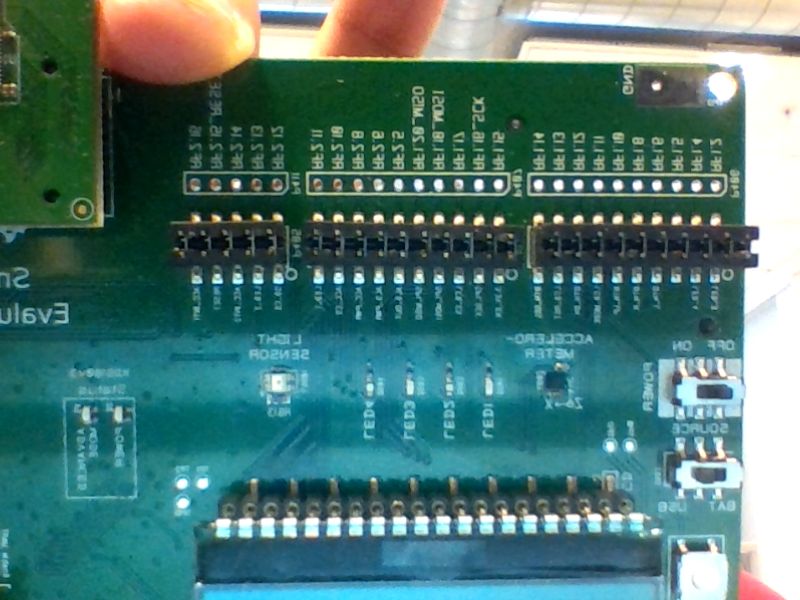

i need one Analog pin for read, but i can't find any map over the board i have (Please see photo).

can anyone please tell me, where i can find Analog pin, and what number it have??

and how i can configuere the pin i CCS??

over 5 years ago

0 Siri over 5 years ago

TI__Guru* 79341 points

I assume it is the SmartRF06 EB you are showing a picture of.
The schematics for this board is found here:

http://www.ti.com/lit/swrr143

Board files for this HW can be found in rev. 1.40 of the SimpleLink CC13x0 SDK

www.ti.com/.../1.40.00.10

There are some examples using the ADC in the CC13x0 SDK.

IOID_23 – IOID_30 are analog capable DIOs , but only IOID_23 (the light sensor) is available on the EB. The other IOs are connected to other peripheral on the board, and you need to modify the board if you want to use those DIOs as analog inputs

Siri

0 Abbas Anwar over 5 years ago in reply to Siri

Prodigy 130 points

Thanks for help, but now i can't find IOID_23 on my board. does anyone know what is written on the board?... and how can i congif IODI_23 in CCS?

i have seen the ADC Example, it's only the pin config i have problem with.

Yes Siri... the name of this board is SmartRF06 EB

0 Siri over 5 years ago in reply to Abbas Anwar

TI__Guru* 79341 points

In the CC1310DK_7XD.h file you will see that IOID_23 is the ALS_OUT signal (P2.5):

/* Ambient Light Sensor */
#define CC1310DK_7XD_ALS_OUT IOID_23 /* P2.5 */
#define CC1310DK_7XD_ALS_PWR IOID_26 /* P2.6 */

This is marked ALS_OUT/RF_2.5 on the EB.

Please take a look at our examples and the pin driver documentation to see how pins should be configured:

dev.ti.com/.../_p_i_n_c_c26_x_x_8h.html

Siri

0 Abbas Anwar over 5 years ago in reply to Siri

Prodigy 130 points

Thanks for help :)
