BQ79616-Q1: Daisy Chain isolation

Chuqiang Wen

Expert 4560 points

Part Number: BQ79616-Q1
Other Parts Discussed in Thread: BQ79600-Q1, , BQ79718-Q1

Hi expert,

If BQ79616-Q1 and BQ79600-Q1 placed nearly in same PCB, can we use capacitor isolation without ESD diode like two nearby 79616 isolation in the same PCB?

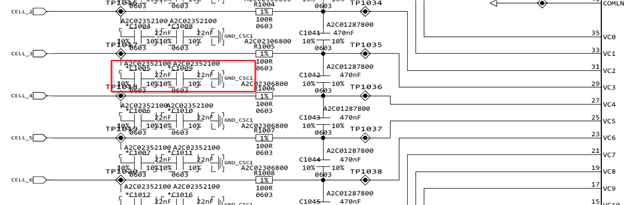

Do you have any suggestions from ESD performance regarding to it's better or not if remove below ESD capacitor on the battery cell input?

Thanks!

Ethan Wen

over 2 years ago

0 Viktor Tasevski over 2 years ago

TI__Intellectual 2710 points

Hello Ethan,

1. If the communication lines (COMHP, COMHN, COMLP and COMLN) on the board are not subject to ESD testing then yes you can omit the ESD protection diode on the PCB between the two devices.

2. This depends on the system / application and the conditions / severity of the ESD event. It is better to not remove the capacitors but it is also possible to remove these and pass the ESD test under certain conditions.

Regards,

Viktor.

0 Chuqiang Wen over 2 years ago in reply to Viktor Tasevski

TI__Expert 4560 points

Hi Viktor,

Thanks for your reply!

Do we have recommended transformer used in daisy chain communicated isolation which has small size and low cost?

Regards,

Ethan Wen

0 Viktor Tasevski over 2 years ago in reply to Chuqiang Wen

TI__Intellectual 2710 points

Hi Ethan,

At this moment we recommend the following three transformers: HMU1228NL, HM2147NL, SM91502AL.

Regards,

Viktor.

0 Chuqiang Wen over 2 years ago in reply to Viktor Tasevski

TI__Expert 4560 points

Hi Viktor,

My customer has simply measured WE 7494100 transformer. It can work for daisy chain communication. So just want to confirm with you, is there any concerns if we do not use our recommend transformer.

BTW, do you have BQ79718-Q1 datasheet can share to customer? Please share to me if available.

Regards,

Ethan Wen

+1 Viktor Tasevski over 2 years ago in reply to Chuqiang Wen

TI__Intellectual 2710 points

Hi Ethan,

Yes they can use this transformer as long as they don't see any issues in the communication.

Regards,

Viktor.
