What is the value in the WEBENCH Power Designer if it not follows the obvious design limits.

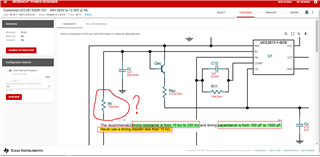

The compensation network is 1nF and10k for all cases, is that really so simple?
This thread has been locked.
If you have a related question, please click the "Ask a related question" button in the top right corner. The newly created question will be automatically linked to this question.
The compensation loop is located on the secondary side. The primary side circuit is to provide the correct logic. This R and C is to provide some additional noise filtering. You should ignore this for the compensation purpose. Please follow the datasheet for the compensation loop setup.
