TPS92623-Q1: thermal sharing

Max Fujimoto

Part Number: TPS92623-Q1

Hi team,

I have a question about the thermal shelling of TPS92623. I understood that the voltage across R_(SNS1) is compared by the operational amplifier and constant current control is performed. I also comprehended that the resistance connected to RES₁ after that consumes excessive heat, and the timing of switching between OUT₁ and RES₁ can be adjusted by the resistance value.

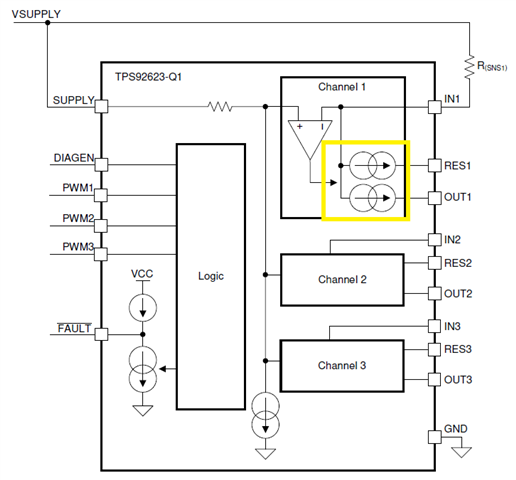

However, what kind of mechanism is the part that switches between these two output terminals? Is there a function to monitor current or voltage in the yellow frame in the figure?

Regards,

Masanao Fujimoto

over 1 year ago

0 Gracie Guo over 1 year ago

TI__Genius 10566 points

Hi Masanao,

Do you have any project that needs this inside mechanism?

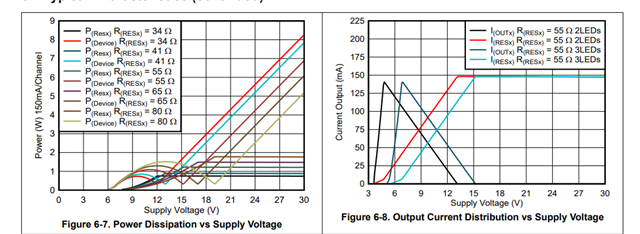

In fact, the power dissipation and current could refer to the figure as well as this link:

e2e.ti.com/.../faq-tps92633-q1-how-to-design-with-cera-tps92633-q1-in-five-minutes

BR, Gracie

0 Max Fujimoto over 1 year ago in reply to Gracie Guo

TI__Expert 3235 points

Gracie,

I appriciate your reply. Not for the project, but to answer any questions from our customers. Because they are very interested in this thermal sharing.

Thank you for sending the link. I understand how to design. Is it okay to think that the current is distributed by comparing the current with an operational amplifier or something inside and turning the transistor on / off?

Regards,

Masanao Fujimoto

0 Gracie Guo over 1 year ago in reply to Max Fujimoto

TI__Genius 10566 points

Hi Max,

Since this is a public forum, and the inside mechanism is NDA restrictions, I would send you a mail explaining this.

BR, Gracie
