TPS23882: sifos test fail

Tommy Tzeng

Part Number: TPS23882
Other Parts Discussed in Thread: TPS2388, TPS23881, TPS23861

Hi Sir,

currently customer use Sifos to test TPS23882 IEEE802.3 at/at compliance,

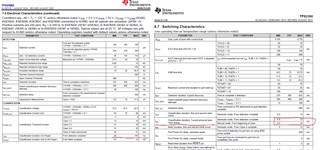

there is a message of class tome fail, we compared the datasheet of TPS23882 and TPS2388 , saw the following time difference,

we want to know whether the class time can be optimize from the software setting, or this problem a limitation of the TPS23882 itself?

over 2 years ago

0 Shuai Yuan over 2 years ago

TI__Intellectual 2290 points

Hi,

Sorry, we are on vacation now, we will reply to you when we come back.

Best Regards

Shuai

0 Raymond Lin over 2 years ago

TI__Mastermind 34256 points

Hi Tommy,

What SRAM version did the customer used when running the Sifos test?

Linked here is an FAQ regarding TPS23882 Sifos conformance test reports and how the PSE was set up (power allocation, operation mode, etc.): https://e2e.ti.com/support/power-management-group/power-management/f/power-management-forum/872937/faq-tps23882-is-the-tps23882-type-3-2-pair-ieee-802-3bt-30w-15-4w-compliant-where-can-i-find-tps23882-passing-sifos-conformance-test-reports-to-be-certain

Thanks and Regards,

Raymond Lin

0 Raymond Lin over 2 years ago

TI__Mastermind 34256 points

Hi Tommy,

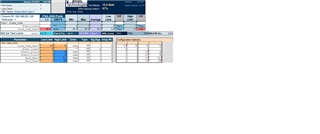

Please use these Sifos setting when running the test for TPS23882 (for Type-3 PSE):

Thanks and Regards,
Raymond Lin

0 Tommy Tzeng over 2 years ago in reply to Raymond Lin

Genius 5760 points

Hi Raymond,

thanks for your reply and help.

does the customer want to download the latest SRAM v07 version?

TPS23882_SRAM_Release_Notes_ROM_Advisory_rev_7p0.pdf

0 Raymond Lin over 2 years ago in reply to Tommy Tzeng

TI__Mastermind 34256 points

Hi Tommy,

I would recommend customer to use latest SRAM v07 for testing as it includes bug fixes and patches that v03 or v00 (no SRAM, standalone PSE) might not have (see highlighted section below).

Thanks and Regards,

Raymond Lin

0 Tommy Tzeng over 2 years ago in reply to Raymond Lin

Genius 5760 points

Hi Raymond,

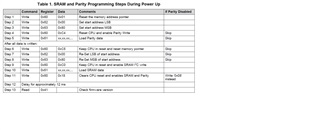

regarding the SRAM code of TPS23882, how to load in to TPS23882? customer currently refer to the steps at https://www.ti.com/lit/an/slvae12c/slvae12c.pdf?ts=1675596527983

but we don't know which file is the SRAM code? which one is the parity code?

0 Raymond Lin over 2 years ago in reply to Tommy Tzeng

TI__Mastermind 34256 points

Hi Tommy,

You can find version 07 of the SRAM from mySecure under IC Design Resources (should be a .exe file). Once downloaded, run the application and by default it should save a folder called "TPS23881_2_SRAM_CODE_v07" under Program Files -> Texas Instruments. You should then be able to open the folder to find .bin and .bits file for the SRAM and PARITY.

For more reference on how to load SRAM, I recommend taking a look at the reference code linked here: https://www.ti.com/lit/zip/slvc771

Thanks and Regards,

Raymond Lin

0 Tommy Tzeng over 2 years ago in reply to Raymond Lin

Genius 5760 points

Hi Raymond,

may we know one more question,

Classification Duration (1st Finger), is this time programmable?

0 Raymond Lin over 2 years ago in reply to Tommy Tzeng

TI__Mastermind 34256 points

Hi Tommy,

The Classification duration is not programmable, the only timing configuration that can be set/configure/programmed are TLIM, TSTART, TOVLD, and TMPDO. You can find more information regarding these time under register 0x16 (page 61 of the datasheet):

The duration range for tLCE shows the possible timing for the 1st finger classification (can range from 95ms to 105ms) on our PSEs (TPS23881, TPS23882(B), TPS23861, etc.). This duration requirement is also mentioned in the EA PoE 802.3bt standards (for bt PSEs, the long first class event ranges from 85ms to 105ms). Our PSEs are designed to meet this criteria:

Thanks and Regards,
Raymond Lin
