TPS65400: TPS65400: Bode Plot Simulation Query

Chand Padaliya
Prodigy 40 points
Part Number: TPS65400

Ti Support Team,

I want to simulate Bode plot for my Custom Design.

I am using Pspice for TI.

Also Downaloaded Transient and Average Pspice models of TPS65400.

In one of the TI post come to know that need to use Average model for bode plot simulation..

After Opening the average model Pspice design file, and seen External AC source is implemented which is responsible for Bode plot simulation.

My Query is that same implementation will work in my custom design or needed to change amplitude of external AC source or any additonal changes?

Is there any calculation for Inductor, capacitor and AC source amplitude selection?

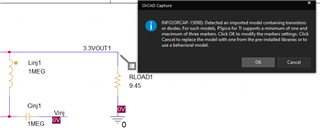

for your reference ,here i am attaching external AC source implementation snap in TPS65400 Average Model Design.

Thanks & Regards,
Chand Padaliya
