TPS2640: Protection diodes

d_zero

Part Number: TPS2640
Other Parts Discussed in Thread: TVS2701

Hi team,

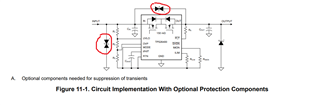

can you tell what is the purpose and how to select schottky diode on output, page 38 figure 11-1 in Datasheet?

2) In what scenario can we use bidirectional TVS2701 instead of SMC diodes for selected diodes below? (Vin_max working voltage is 25V)

is it ok to use TVS2701 if surge level is class2 1kV 42Ohm?

Best Regards,

over 2 years ago

0 Kunal Goel over 2 years ago

TI__Guru* 79181 points

Hi D,

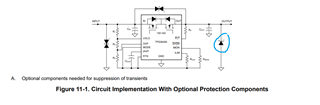

1. Output schottky is to clamp negative voltages within safe limit . You can refer EVM part no.

2. Yes TVS2701 is fine. Bidirectional you will need because surge can be negative also.

Regards

Kunal Goel

0 d_zero over 2 years ago in reply to Kunal Goel

Genius 4815 points

Hi Kunal,

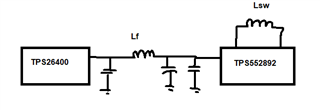

if we have after the eFuse EMI filter and then buck/boost converter do we need the Schottky diode

In Ds is stated -> Optional Schottky Diode (D3) for output short circuit protection with inductive loads and cables. Do we treat the EMI filter inductor as inductive load?

Best Regards,

0 Kunal Goel over 2 years ago in reply to d_zero

TI__Guru* 79181 points

EMI filter can be treated as inductive load. Using schottky is a recommendation not necessary for device function. If your application has chances of short at output side you can consider using it.

0 d_zero over 2 years ago in reply to Kunal Goel

Genius 4815 points

Hi Kunal,

in our case max Vin and Vout of efuse is 25V ( Imax 1.8A), is it ok to use a Schottky with 40V and 1A ( MBRA140T3G) ?

What is the theory on how to select Schottky regarding the voltage and current needed ?

Best Regards,

+1 Kunal Goel over 2 years ago in reply to d_zero

TI__Guru* 79181 points

Hi D,

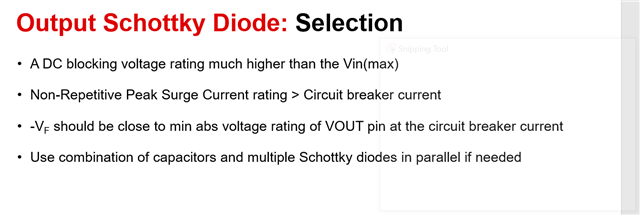

Please refer image i shared regarding schottky selection.

This looks fine MBRA140T3G.

Regards

Kunal Goel
