VIN = 12VDC - 48VDC
VOUT = 5VDC
IOUT = 10 A
the circuit is here
when I apply 12VDC at the input with no load, it only gives me 2.9VDC at the output and not the 5VDC I expect.

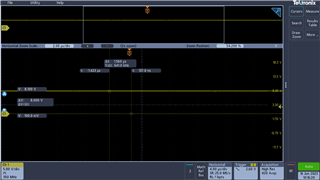

I attach the images of the switching signals.
low output
high output

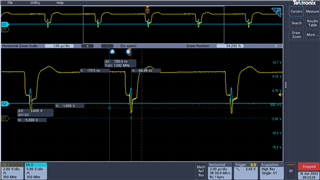

both
blue signal = low output
yellow signal = high output

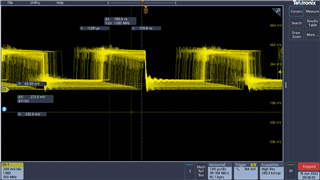

ho signal

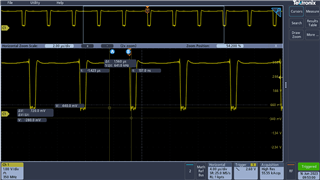

Sorry, I was measuring the previous HO signal wrong, this is the correct one, but all the other conditions are still the same, could you help me?
my coil was not working, I changed it and everything worked correctly, but I had other problems.
1.- when I am drawing 1A with a 12V input, just by removing the load, the output drops to 3V, but if I turn on and off the power supply, it gives me 5V again.
2.- it gives me up to 5A, if I put a bigger load, the coil starts to make noise.
How can I solve this?
VIN = 12V
FAIL NUMBER 1
LO SIGNAL
HO SIGNAL
FAIL NUMBER 2
LO SIGNAL with charge 5.6A without fail
LO SIGNAL (after a while of running and the coil starts to make a noise and the output voltage starts to go down) with fail
HO SIGNAL with charger 5.6A
HO SIGNAL (after a while of running and the coil starts to make a noise and the output voltage starts to go down) with fail
Hello Jesus
1. Please try to increase Css (~ 1uF) and check it again
2. Please add UVLO capacitor and diode.
3. I guess your inductor might be saturated or there might be thermal issue on your board. Please measure V(UVLO), V(SW), inductor current, V(SS) together.
-EL
