TPS54J060: VIN transient (AC) spec check

Jim Tsai

Expert 4470 points

Part Number: TPS54J060

Hi,

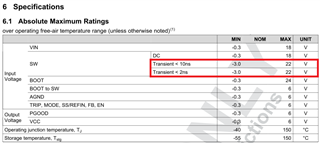

Could you please provide VIN transient (AC) spec as below DS shown SW spec?

I can only find VIN DC spec is 18V but no transient show in DS.

over 2 years ago

0 Tomoya Ide over 2 years ago

TI__Genius 11416 points

Hi Jim,

Please see below for the VIN transient (AC) spec:

Thank you,
Tomoya

0 Jim Tsai over 2 years ago in reply to Tomoya Ide

TI__Expert 4470 points

oops... I think I read the old revision DS, thanks for your remind.

0 Tomoya Ide over 2 years ago in reply to Jim Tsai

TI__Genius 11416 points

No problem! If this resolved your issue, please click on "This resolved my issue" button. Thank you!

0 Jim Tsai over 2 years ago in reply to Tomoya Ide

TI__Expert 4470 points

Hi Ide,

Customer has another request, could you please provide max and min value in below table?

Or you can provide a tolerance in percentage which can cover below all condition?

		Min.(KHz)	Typ.(KHz)	Max.(KHz)
3.3V	4.95A		1100
1.2V	2.3A		600
3.3V	4.3A		1100
1.2V	0.95A		600
1.0V	0.8A		600

0 Tomoya Ide over 2 years ago in reply to Jim Tsai

TI__Genius 11416 points

Hi Jim,

TPS54J060 is D-CAP3 and not a true fixed frequency control mode, and we can only provide the switching frequency that's in the datasheet in the EC table and the Typical Characteristics data:

If you need a rough estimate, you can expect a tolerance of about +/-15%. However, please remember that this is not a guarantee from us, and it's strictly for steady-state, FCCM mode operation. Since D-CAP3 is a variable frequency control, the frequency can also increase/decrease outside that range during transient response to maintain regulation and for fast recovery.

Thank you,
Tomoya
