TPS65911: Inductor position

Dice-K

Mastermind 7480 points

Part Number: TPS65911

Hi support team,

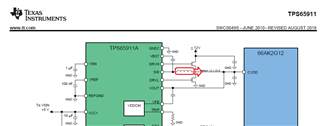

Is the inductor position on page 121 of SWCS049S wrong?

Regards,

Dice-K

over 1 year ago

0 Conner Gillette over 1 year ago

TI__Genius 13880 points

Good Morning Dice-K,

I will review the document and provide an update by EOB tomorrow.

Kind regards,

Conner Gillette

0 Conner Gillette over 1 year ago in reply to Conner Gillette

TI__Genius 13880 points

No, the inductor is placed correctly. This is also shown in the TPS65911A User's Guide for 66AK2G12 Processor , Figure 2.

Kind regards,

Conner Gillette

0 Dice-K over 1 year ago in reply to Conner Gillette

Mastermind 7480 points

Hi Conner,
Thank you for your reply.

Both figures are wrong.
The "dot" between FETs is missing.

Best regards,
Dice-K

+1 Conner Gillette over 1 year ago in reply to Dice-K

TI__Genius 13880 points

My apologies Dice-K. After reviewing, you are correct. Since these pins are for a controller, the FETs are external to the device and a dot should indeed by placed there for the switching node.

Kind regards,

Conner Gillette

0 Dice-K over 1 year ago in reply to Conner Gillette

Mastermind 7480 points

Hi Conner,
Thank you for reviewing.

I would appreciate it if you could correct this typo along with the PWRDN pin typo.

Best regards,
Dice-K
