TPS1HC30-Q1: review schematic

Lawrence He
Genius 3115 points
Part Number: TPS1HC30-Q1

Hi, Support Team

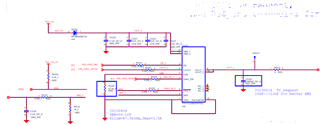

We will use TPS1HC30-Q1 as below chart, have any concern?

if any suggestion, Please advise me.

Thanks,

Best regards,

Lawrence

  • 0
    TI__Mastermind 32650 points

    Hi Lawrence,

    I noticed that the FAULT pin has a protection resistor after the pull up to 1.8V. It is better to put the protection resistor closer to the MCU since when FAULT pulls down, the MCU will now see a voltage division and not the expected 1.8V.

    I also noticed that for best EMC performance, the customer is missing the 220nF capacitor from supply to system_GND.

    Since there is no GND network, system_GND and IC_GND are the same node.

    Thanks,

    Shreyas
