TPS7A45: Startup measurement request

Kazuhiko Hirano

Part Number: TPS7A45

Hello,

My customer looked at the following E2E thread, and they would also like to know the rise time at no load and Iout=1.5A respectively.
https://e2e.ti.com/support/power-management-group/power-management/f/power-management-forum/717424/tps7a45-start-up-time

Their schematics is as follows. Could you modify the EVM and take waveforms like the E2E thread, please?

Best regards,

K.Hirano

over 1 year ago

0 Erin Thibeault over 1 year ago

TI__Expert 6570 points

Hi Kazuhiko,

I will take these measurements and get back to you by the end of next week.

BR,

Erin

0 Kazuhiko Hirano over 1 year ago in reply to Erin Thibeault

TI__Genius 14918 points

Erin,

Thank you very much, I really appreciate your help.
I look forward to receiving the test results.

Best regards,

K.Hirano

0 Kazuhiko Hirano over 1 year ago in reply to Kazuhiko Hirano

TI__Genius 14918 points

Erin,

How are you doing?
I attached wrong schematics before.
I attach the correct schematics here again.
Could you modify the EVM and take waveforms like the E2E thread for no load and Iout=1.5A, please?

Best regards,

K.Hirano

0 Erin Thibeault over 1 year ago in reply to Kazuhiko Hirano

TI__Expert 6570 points

Hi Kazuhiko,

I just received the evaluation board to take this measurement. I will get this measurement to you by the end of the day tomorrow.

BR,

Erin

0 Kazuhiko Hirano over 1 year ago in reply to Erin Thibeault

TI__Genius 14918 points

Erin,

How is your measurements going?

Best regards,

K.Hirano

0 Erin Thibeault over 1 year ago in reply to Kazuhiko Hirano

TI__Expert 6570 points

Hi Kazuhiko,

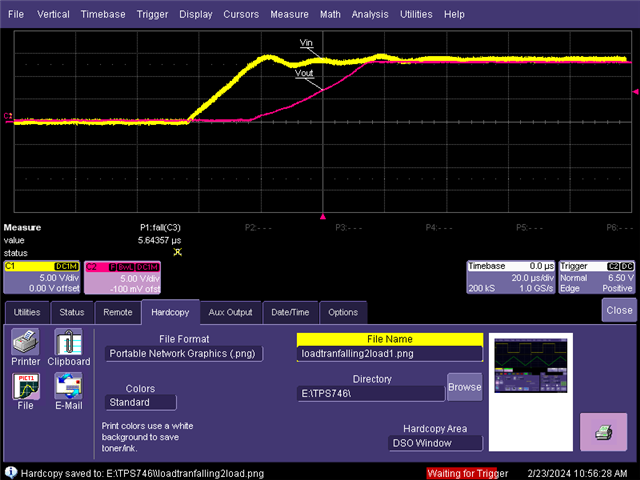

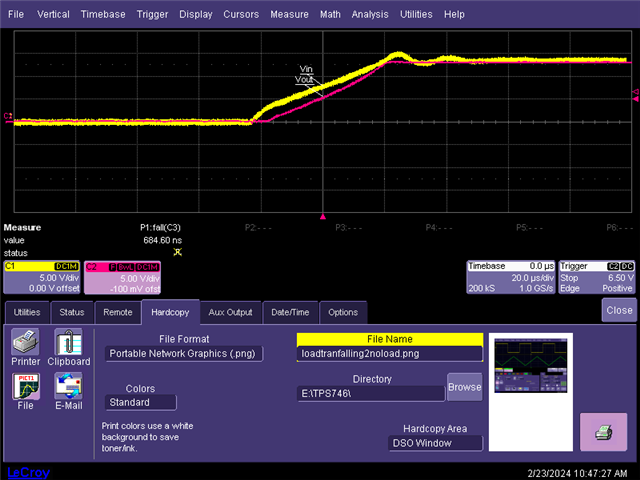

Thanks for your patience. Here are the measurements at full load and no load. I used the TPS7A4501 EVM per the schematic you shared for both measurements.

BR,

Erin
