mounting hole of TPS5450EVM-254

kalpak

Other Parts Discussed in Thread: TPS5450EVM-254

The size of the PCB is given in the user guide but the distance between the mounting holes of TPS5450EVM-254 is not given.

Can TI provide this info?

thanks

kalpak

over 14 years ago

0 JohnTucker over 14 years ago

TI__Guru**** 191445 points

What holes are you referring to? The PCB does not have mounting holes and teh IC is surface mount...

0 kalpak over 14 years ago in reply to JohnTucker

Intellectual 270 points

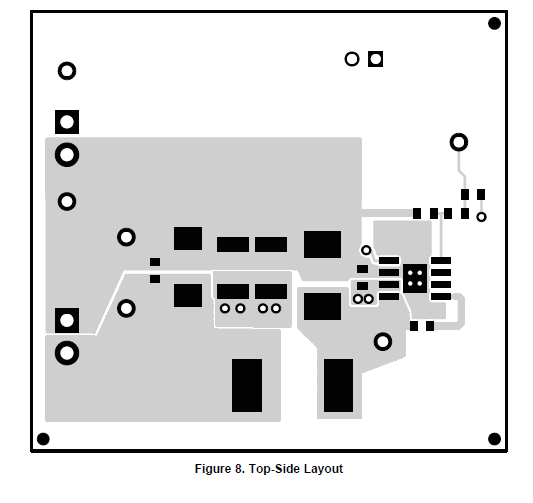

_{What are the 3 dots at the corner for?}

0 JohnTucker over 14 years ago in reply to kalpak

TI__Guru**** 191445 points

they are fiducials. They are just dots used to align the PCB for pick'n'place at the assy fab shop.

0 kalpak over 14 years ago in reply to JohnTucker

Intellectual 270 points

Oops! I was hoping to use them as is in a project instead of designing a PCB. The price is quite reasonable for prototype production.

Can I convert those fiducials into holes for mounting? 3m holes?

0 JohnTucker over 14 years ago in reply to kalpak

TI__Guru**** 191445 points

There may be internal ground layers under those pads, I dont have access to teh actual pcb database right now to check, but you can probably drill them out. You would be best to use nylon hardware to make any mounting to prevent shorts.

0 kalpak over 14 years ago in reply to JohnTucker

Intellectual 270 points

Thanks for the prompt reply.

Can I get the gerber of the PCB, so that I can measure the distance between holes.

0 JohnTucker over 14 years ago in reply to kalpak

TI__Guru**** 191445 points

Sure, but not until tomorrow. Also, I may be out, so it may not be until Thursday.

0 Anthony F over 14 years ago in reply to JohnTucker

TI__Mastermind 35185 points

Please find attached the gerbers for the EVM and the Altium PCAD 2004 pcb file for the layout. If you don't have PCAD you can download a viewer from their website.

6607.hpa254a.zip
8270.hpa254a.pcb

Regards,
Anthony

0 kalpak over 14 years ago in reply to Anthony F

Intellectual 270 points

Thanks for the files

0 Oleg Zhvankov over 13 years ago in reply to JohnTucker

Prodigy 20 points

Prompt the if you please exact parameters of printed-circuit board (type of mask the thickness of foil of itd) I attempt to find error on your board

0 kalpak over 13 years ago in reply to Oleg Zhvankov

Intellectual 270 points

Oleg Zhvankov said:

Prompt the if you please exact parameters of printed-circuit board (type of mask the thickness of foil of itd) I attempt to find error on your board

Sorry, did not understand your question.

0 Oleg Zhvankov over 13 years ago in reply to Oleg Zhvankov

Prodigy 20 points

2 oz. copper ground planes on the 2 internal layers. that is (2 oz.)

i need the parameters of EVO PCB!

Thanx for help

0 JohnTucker over 13 years ago in reply to Oleg Zhvankov

TI__Guru**** 191445 points

You have the pcb file, all the info is contained in it.
