BQ40Z80EVM-020: GPIO testing in the evm

OverAgent712

Part Number: BQ40Z80EVM-020
Other Parts Discussed in Thread: BQSTUDIO

Tool/software:

Hello,

I want to use the GPIO in the EVM using Bqstudio, what can be done, and how to check if it's happening or not?
The bqstudio has GPIO and flag setup in the settings, how to proceed further with its testing?

over 1 year ago

0 Anthony over 1 year ago

TI__Mastermind 29175 points

Hi Manas,

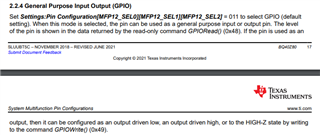

I believe that after configuring the pin the GPIORead() and GPIOWrite() commands can be used to test the functionality of the pin.

Regards,

Anthony

0 OverAgent712 over 1 year ago in reply to Anthony

Intellectual 470 points

Hi Anthony,

Yes, I have seen that and implemented a few of them, I wanted to try other configurations and was clueless to proceed ahead. So I wanted to know what functionality it has and how to add for example charge and discharge through GPIO, and which pins should I configure to achieve it.

0 Anthony over 1 year ago in reply to OverAgent712

TI__Mastermind 29175 points

Hi Manas,

Can you please go more into detail about charging and discharging through the GPIO? This will give a better idea of what is trying to be accomplished with the GPIO pins.

Regards,

Anthony

0 OverAgent712 over 1 year ago in reply to Anthony

Intellectual 470 points

Hi Anthony,
I wanted to check if we can enable the CHG_FET and DSG_FET through the GPIO pins and what configuration needs to be done for it.

0 Anthony over 1 year ago in reply to OverAgent712

TI__Mastermind 29175 points

Hello,

I believe this thread below had the same interest in this application:

https://e2e.ti.com/support/power-management-group/power-management/f/power-management-forum/849635/bq40z80-gpio-pin-to-control-dsg-and-chg-mosfets

Please let us know if there are any questions.

Regards,

Anthony
