TPSM63604: Using TLVM13640 on same PCB design

SAERO

Part Number: TPSM63604
Other Parts Discussed in Thread: TLVM13640,

Tool/software:

Hello,

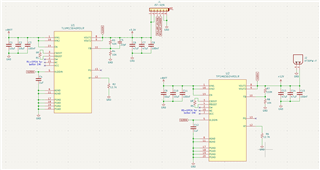

We are designing 2 buck regulators with TLVM13640 and TPSM63604. We are using TPSM63604 for 12V output and TLVM13640 for 5.3V output. Can someone check below schematic and suggest if any changes are required?

All capacitors used are ceramic.

Also we are planning to use same PCB design for both modules. Any issues in doing that?

Thank you!

9 months ago

0 Andrew Kutzler 9 months ago

TI__Mastermind 23685 points

Hi Saero,

As for as the pinnout for the devices are concerned the only difference is that the TPSM63604 has some additional SYNC functionality on pin 14. Abs max voltages for both devices are the same. It should be ok to do this.

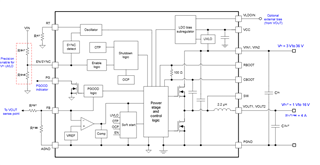

TLVM13640

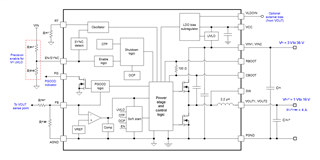

TPSM63604

Thanks,
Andrew

0 SAERO 8 months ago in reply to Andrew Kutzler

Intellectual 361 points

Hello Andrew,

What stops TLVM13640 from working beyond 6V output?

Thank you!

0 Andrew Kutzler 8 months ago in reply to SAERO

TI__Mastermind 23685 points

Hi Sareo,

The TLVM13640 wasn't designed to support higher VOUT values. There's likely some instability in the control loop that happens if VOUT>6V which is why it only supports <6V operation.

Thanks,

Andrew
