LMR51420: about Package issue

Lawrence He

Genius 3105 points

Part Number: LMR51420

Tool/software:

Hi, Support Team

We saw the datasheet of LMR51420, and we find the package name is different as below chart:

package drawing is: DDC package

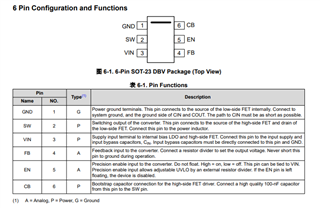

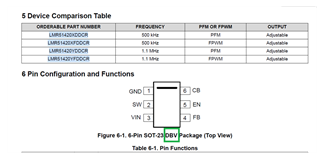

but datasheet of Figure 6-1 is DBV package

if any suggestion, Please advise me.

Thanks,

Best regards,

Lawrence

9 months ago

0 Ridge Lahti 9 months ago

TI__Mastermind 22060 points

Hi Lawrence,

I will reach out to the team for clarification and reply by the end of the week.

Best regards,

Ridge

0 Ridge Lahti 9 months ago in reply to Ridge Lahti

TI__Mastermind 22060 points

Hi Lawrence,

The correct package designator for this device is DDC. Please refer to the package information in Section 11 of the datasheet, which states DDC.

Best regards,

Ridge

0 Sky Kao 9 months ago in reply to Ridge Lahti

Intellectual 610 points

Also, please confirm that the error is only in the image, where "DBV" should be corrected to "DDC."
The pin sequence for LMR51420 as marked in the datasheet is correct, right?

0 Ridge Lahti 9 months ago in reply to Sky Kao

TI__Mastermind 22060 points

Hello,

The diagram and pin sequencing is correct. The typo is only the "DBV" label.

Best regards,

Ridge
