LM5185-Q1: Reference design for 240W output

Nam, Dino

Expert 6365 points

Part Number: LM5185-Q1

Tool/software:

Dear team,

My customer would like to design power supply with below specification.

- Input : 30V ~ 60V(Typ. 48V)

- output : 24V / 10A, isolated.

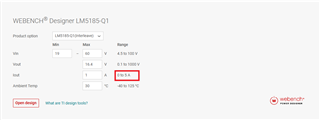

Using webench tool, I can get below data. Can I use below design for 240W output?

At TI.com main page of LM5185-Q1, we can see below. current limit is 5A. which one is correct? Do I have to design using 2xLM5185-Q1 for 24V/10A output? How can I design " Interleave" type?

Is there any reference schematic for interleave configuration? please let me know your opinion.

Thank you.

2 months ago

0 Ridge Lahti 2 months ago

TI__Mastermind 18465 points

Hello,

I have assigned this thread to the responsible engineers.

Best regards,

Ridge

0 Manuel Alva Hernandez 2 months ago

TI__Genius 11036 points

Nino,

Your output specs 24V/10A Pout=240W is too much power considering the limited input voltage VIN_min=30V (Iin_DC>8A, Iin_pk>>8A). What application is this? Are you sure VIN has those restricted values? I recommend reviewing reference design with ~240W using different Flyback Controller. TI Reference Designs Library

Thank you

0 Nam, Dino 2 months ago in reply to Manuel Alva Hernandez

TI__Expert 6365 points

Hello Manuel,

Happy New Year!! Thank you for your comment.

The application is Power Distribution Unit for 48V battery system.

Can I use interleave configuration using 2 or 3 x LM5185-Q1?

Please let me know your opinion.

Thank you.

0 Manuel Alva Hernandez 2 months ago in reply to Nam, Dino

TI__Genius 11036 points

Hi Nino,

I just asked if this is possible to an expert in my group. Please allow me to send a response on Monday next week as people still on vacation for holidays,

Thank you

+1 Manuel Alva Hernandez 2 months ago in reply to Manuel Alva Hernandez

TI__Genius 11036 points

Hi Nino,

I got a reply back on this. Unfortunately, it is not possible to use 2x or more LM5185-Q1 to get such amount of power. I recommend checking reference design with your power level demands using a different Flyback controller.

Thank you
