Phillip Rivers

Part Number: LMR36503
Other Parts Discussed in Thread: LM5168

Tool/software:

I am using your part : LMR36503

I would like the most galvanic isolation is there a reference design? I am most concerned with the transformer and its orientation.

I want to check my design against your reference design. I want to maximize the galvanic isolation

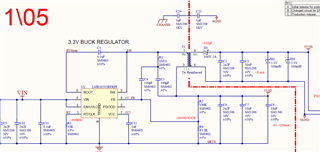

(please find attached image)

Regards,

Phil

1 month ago

0 Richard Fu22 1 month ago

TI__Mastermind 28490 points

Hi Phil,

The orientation for the flybuck looks correct, however this device is not a constant on-time control scheme. We don't have a readily available flybuck reference design using the LMR36503. We typically use a dedicated flybuck converter, like the LM5168 for these applications, which is a Constant on-time device. Please see the attached EVM

https://www.ti.com/lit/ug/snvu819/snvu819.pdf?ts=1743542588586&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FLM5168

Thanks,

Richard
