LM5146-Q1: Average/Transient simulation of LM5146 in SIMPLIS

Ryan Rah

Prodigy 180 points

Part Number: LM5146-Q1
Other Parts Discussed in Thread: LM5146

Tool/software:

Is there any SIMPLIS simulation model of LM5146 for AVG/AC analysis?

4 months ago

0 David Baba 4 months ago

TI__Mastermind 39980 points

Hello Ryan,

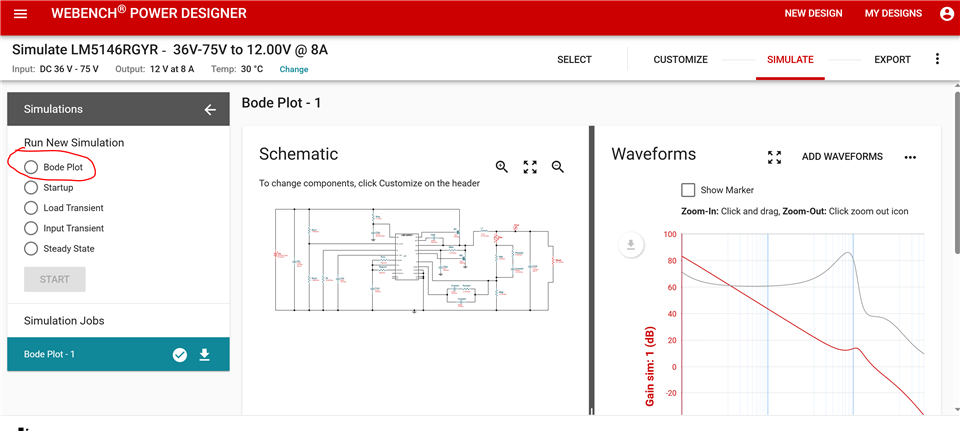

Suggest using the calculator spreadsheet that's in the product folder. Can also use WEBENCH. Calculator will show you AC response for component selection. WEBENCH is an online simulator. We also have models for PSPICE for TI to evaluate time domain performance.

Hope this helps.

David.

0 Ryan Rah 4 months ago in reply to David Baba

Prodigy 180 points

I have done all the steps you mentioned but need the Average model in SIMPLIS software to run AC analysis.

0 David Baba 4 months ago in reply to Ryan Rah

TI__Mastermind 39980 points

Hello Ryan,

Have you tried WEBENCH?

Thanks.

David,

0 Ryan Rah 4 months ago in reply to David Baba

Prodigy 180 points

I fully knew about this feature of WEBENCH and used it before!
But for now, my control system has a complicated compensation circuit which is not possible to implement and use in WEBENCH or quick start excel file!
I have the SIMPLIS simulation file of other controllers but was wondering if I can get for LM5146 as well.

+1 David Baba 4 months ago in reply to Ryan Rah

TI__Mastermind 39980 points

Hello Ryan,

Please see link below, Tim had already shared a model with you previously.

(+) LM5146-Q1: LTspice model/simulation of LM5146 - Power management forum - Power management - TI E2E support forums

David.

0 Ryan Rah 4 months ago in reply to David Baba

Prodigy 180 points

Thanks David,

Since it is a shared account, I lost the traceability for the request!
