TPS62869: Simulation model request

Michael Yeo

Part Number: TPS62869

Tool/software:

Team,

Customer is requesting the Simulation model for TPS62869. Please let us know whether we can provide one of simulation models in below.

TI Device: TPS628691ARQYR
Simulation tool: Ansys SIwave PI Sim
Requested simulation models (one of below models)
1. S-Parameter model
2. RLC SPICE model
3. VRM model

Best Regards,

Michael.

2 months ago

0 Jingyi 2 months ago

TI__Intellectual 1610 points

Hi Michael,

Thanks for using e2e.

We provide Pspice model on ti.com : TPS62869 data sheet, product information and support | TI.com, which should be able to use in Ansys.

BR,

Jingyi

0 Michael Yeo 2 months ago in reply to Jingyi

TI__Intellectual 2420 points

Jingyi,

Could you please check if we can provide below four parameters values instead?

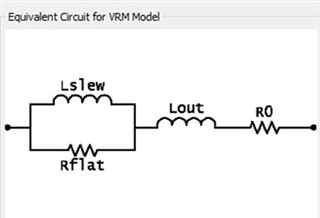

- L_Slew

- R_Flat

- L_Out

- R_0

Best Regards,

Michael.

0 Jingyi 2 months ago in reply to Michael Yeo

TI__Intellectual 1610 points

Hi Michael,

Unfortunately we are unlikely to have this model. I will check with our team.

Does the customer want to simulate the output impedance of the device and the PDN impedance of their PCB?

BR,

Jingyi

0 Michael Yeo 2 months ago in reply to Jingyi

TI__Intellectual 2420 points

Jingyi,

Please refer to the below for customer feedback.

Totally corrects, we using TPS628691ARQYR as a main power VRM (4ea per PCB) so we want to check the PDN Impedance of PCB.

Best Regards,

Michael.

0 Jingyi 2 months ago in reply to Michael Yeo

TI__Intellectual 1610 points

Hi Michael,

Unfortunately we don't have the model that supports PDN simulation currently. I'm very sorry.

If necessary, I can measure the output impedance of our EVM in the lab, but that would need longer time.

BR,

Jingyi
