UCC27424: VIH value

Roy Chou1

Genius 16080 points

Part Number: UCC27424
Other Parts Discussed in Thread: UCC27524,

Tool/software:

Hi Team,

We have some questions would like to confirm with you.

1. Compare to UCC27524, UCC27424 VIH(min) is lower. May you share the reason?

2. We have two D/C of UCC27424. D/C 2436 and D/C 2503.

3. Would the VIH value drifted by operation time?

DC2503 VIH are 2.2V and DC2436 VIH are 1.75V. May you share the reason why these two D/C cause this difference?

Regards,

Roy

2 months ago

0 Amy Wozniak 2 months ago

TI__Intellectual 895 points

Hi Roy,

1. The UCC27524 and the UCC27424 are different devices. They have different designs, meaning these values may vary. However, both rails are suitable for 3.3V TTL logic.

2. We don't expect there to be significant differences as a result of operation time. These different values are most likely a result of variations within the ICs, but according to the datasheet, these are both within the expected range, and suitable for use with a 3.3V rail.

Best,

Amy

0 Roy Chou1 2 months ago in reply to Amy Wozniak

TI__Genius 16080 points

Hi Amy,

Thank you for your information.

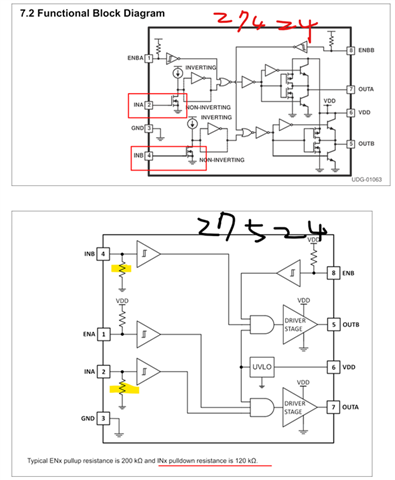

According to the UCC27524 block diagram, it has pull low 120kohm resistor on INA/B, how about UCC27424?

Regards,

Roy

0 Amy Wozniak 2 months ago in reply to Roy Chou1

TI__Intellectual 895 points

Hi Roy,

The UCC27424 does not have a pulldown structure. An external pulldown is needed.

Best,

Amy
